Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Put on gloves to prevent hand injuries.

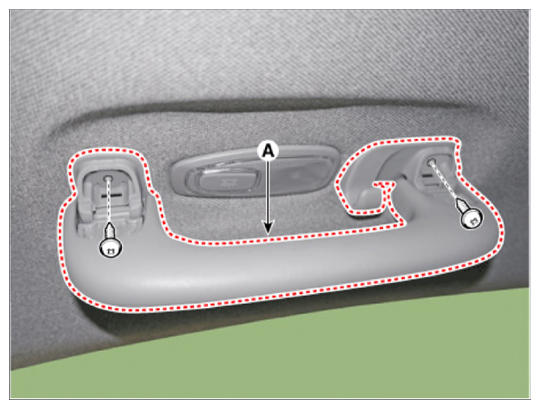

  1. After lifting up the assist handle caps and loosening the mounting screws, remove the assist handle (A).
    G14526422Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse the removal procedure.
