Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Put on gloves to prevent hand injuries.
- Remove the trunk lid weatherstrip.
(Refer to Trunk Lid - "TRUNK LID WEATHERSTRIP ")
- Remove the luggage covering board (A).

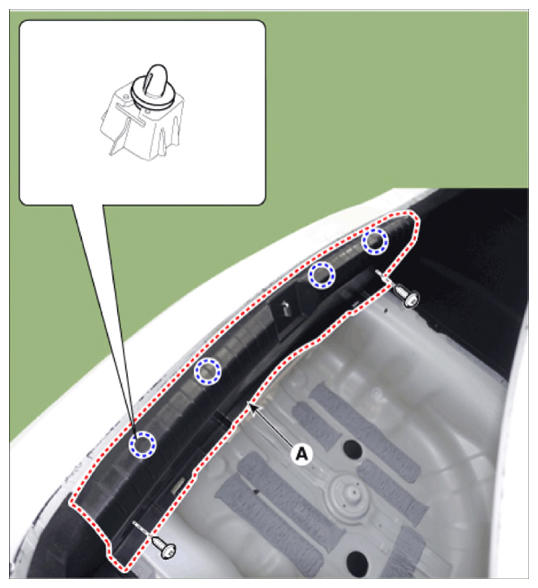

- Loosen the mounting clips and remove the rear transverse trim (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips.
