Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the rear seat cushion assembly.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

  3. Remove the front door body side weatherstrip.
  4. Remove the rear door body side weatherstrip.
  5. Remove the front door scuff trim.

    (Refer to Interior Trim - "DOOR SCUFF TRIM ")

  6. Remove the rear door scuff trim.

    (Refer to Interior Trim - "DOOR SCUFF TRIM ")

  7. Remove the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  8. Remove the center pillar lower trim.

    (Refer to Interior Trim - "CENTER PILLAR TRIM ")

  9. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  10. Remove the accelerator pedal.

    (Refer to Engine Control/Fuel System - "ACCELERATOR PEDAL ")

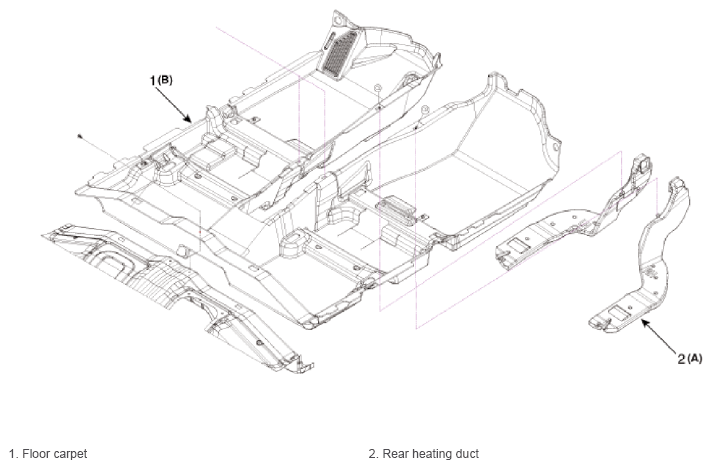

  11. Remove the rear heating duct (A).
  12. Remove the floor carpet assembly (B).
  13. To install, reverse the removal procedure.

    Information

    • Replace any damaged clips.
G14526482Courtesy of HYUNDAI MOTOR AMERICA
