[steering Column Shroud Lower Panel]

  1. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

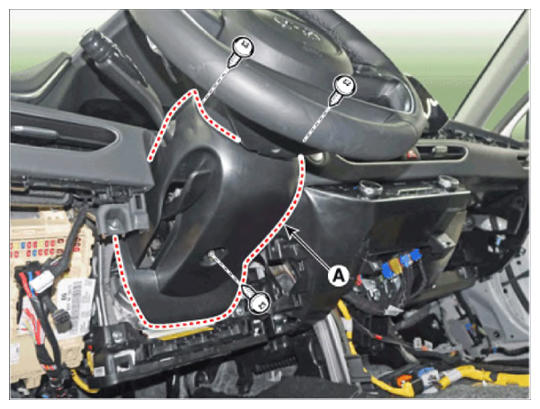

  2. Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).
    G14526368Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
