Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  • Put on gloves to prevent hand injuries.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front seat assembly (both sides).

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  3. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  4. Remove the front pillar trim

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  5. Remove the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  6. Remove the cluster fascia panel.

    (Refer to CLUSTER FASCIA PANEL  Cluster Pad - "Center Fascia Panel")

  7. Remove the AVN head unit.

    (Refer to Body Electrical System - "AVN HEAD UNIT ")

  8. Remove the instrument cluster.

    (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

  9. Remove the crash pad center panel.

    (Refer to Crash Pad - "CRASH PAD CENTER PANEL ")

  10. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  11. Remove the multifunction switch assembly.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

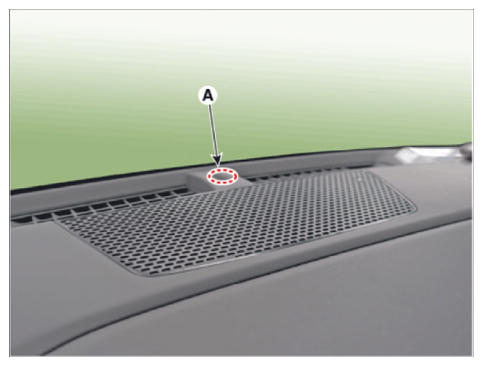

  12. Using a flat-tip screwdriver or remover, remove the photo sensor (A) and Center speaker grill (B).
    G14526393Courtesy of HYUNDAI MOTOR AMERICA

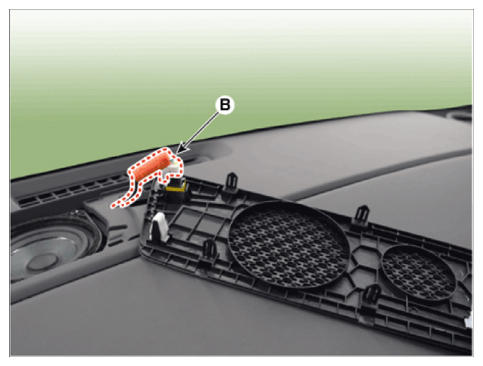

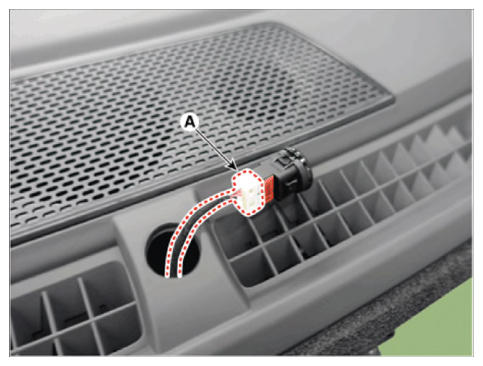

  13. Press the lock pin and separate the photo sensor connector (A) and Security sensor connector (B).
    G14526394Courtesy of HYUNDAI MOTOR AMERICA
    G14526395Courtesy of HYUNDAI MOTOR AMERICA

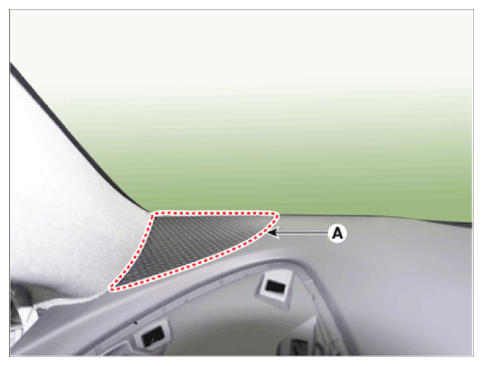

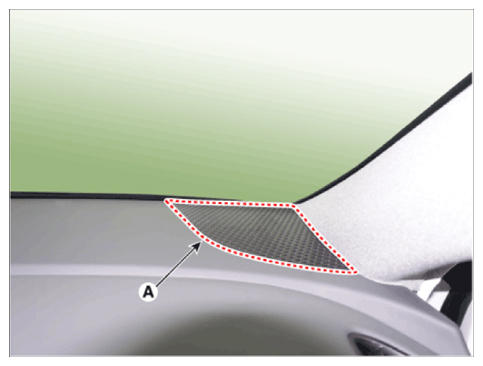

  14. Using a flat-tip screwdriver or remover, remove the side speaker grill (A).

    [RH]

    G14526396Courtesy of HYUNDAI MOTOR AMERICA

    [LH]

    G14526397Courtesy of HYUNDAI MOTOR AMERICA
  15. Remove the center speaker, side speaker [RH.LH].

    (Refer to Body Electrical System - "SPEAKER ")

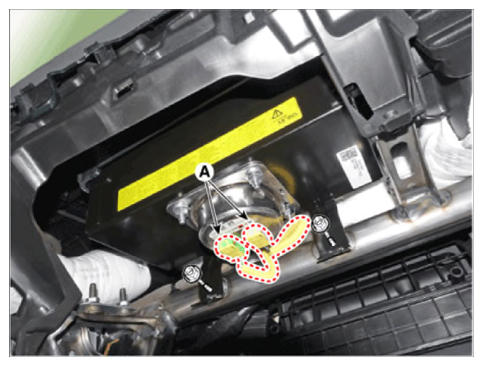

  16. Loosen the passenger's airbag mounting nuts and separate the passenger's airbag connectors (A).
    G14526398Courtesy of HYUNDAI MOTOR AMERICA

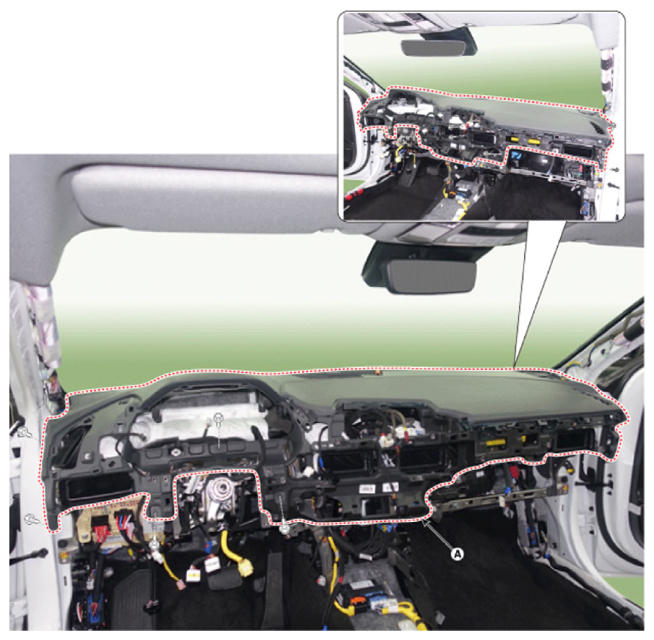

  17. Loosen the mounting bolts, nuts and remove the remove the main crash pad assembly (A).
    G14526399Courtesy of HYUNDAI MOTOR AMERICA
  18. To install, reverse the removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
