Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

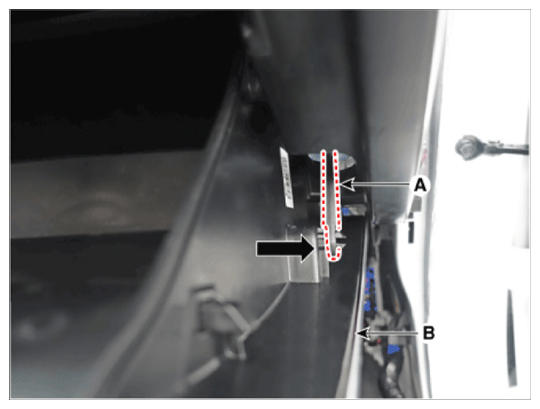

Separate the air damper (A) from the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA

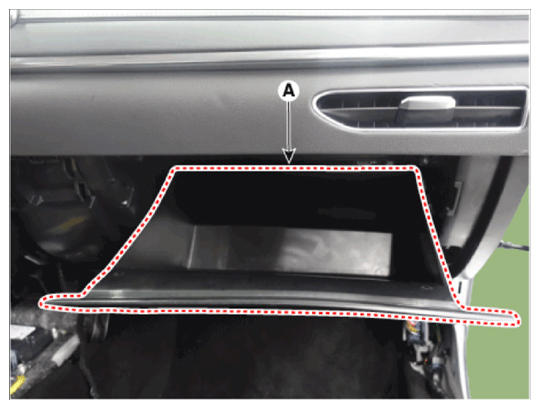

Press both sides inwards to open the glove box (A) downwards.

Courtesy of HYUNDAI MOTOR AMERICA

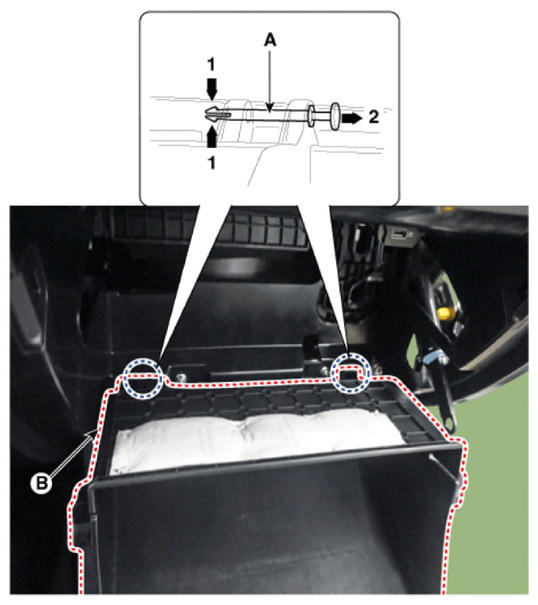

Separate the lockpins (A) and then remove the glove box (B).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
