[Crash Pad Center Garnish]

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
Put on gloves to prevent hand injuries.

Remove the crash pad upper garnish.
(Refer to Crash Pad - "CRASH PAD GARNISH ")

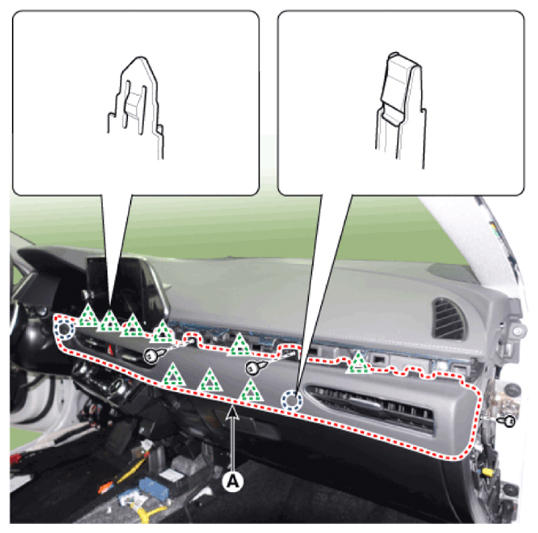

Loosen the mounting screws, using a flat-tip screwdriver and remove the crash pad center garnish (A).

Courtesy of HYUNDAI MOTOR AMERICA

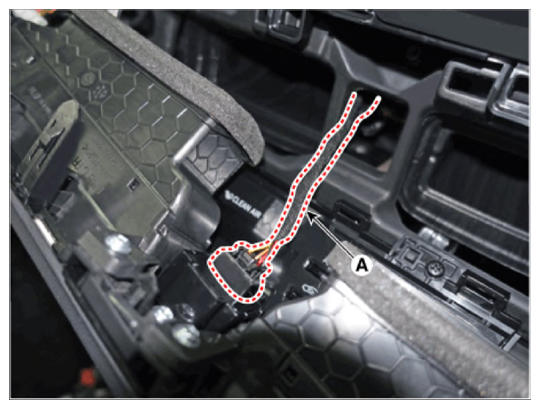

Press the lock pin and separate the hazard switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

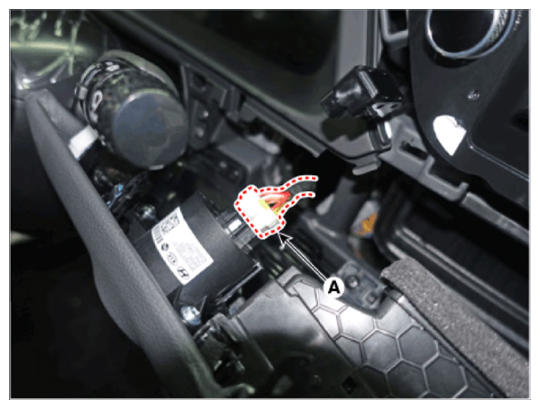

Press the lock pin and separate the start button switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Replace any damaged clips (or pin-type retainers).
