Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Put on gloves to prevent hand injuries.
- Lower the steering wheel.
- Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
- Remove the crash pad center garnish.
(Refer to Crash Pad - "CRASH PAD GARNISH ")

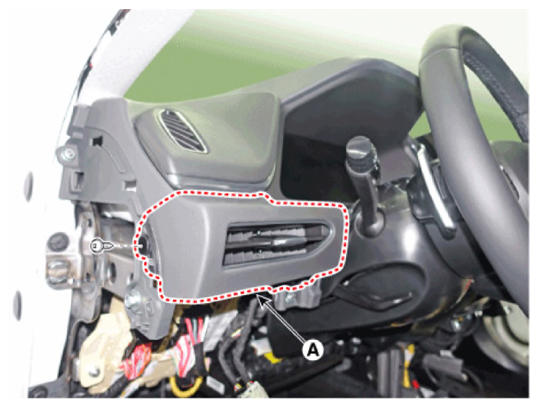

- Loosen the mounting screw and remove the duct garnish (A).

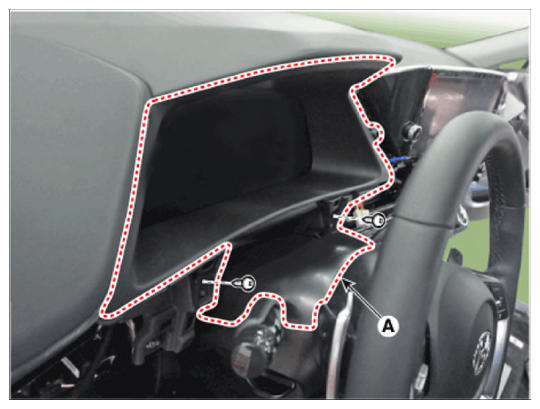

- Loosen the mounting screws and remove the cluster fascia panel (A).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
