Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to scratch the body surface.
- Remove the side seal moulding with the front and rear door full open.
- Remove the front wheel guard.
(Refer to Body Side Molding - "FRONT WHEEL GUARD ")
- Remove the rear wheel guard.
(Refer to Body Side Molding - "REAR WHEEL GUARD ")

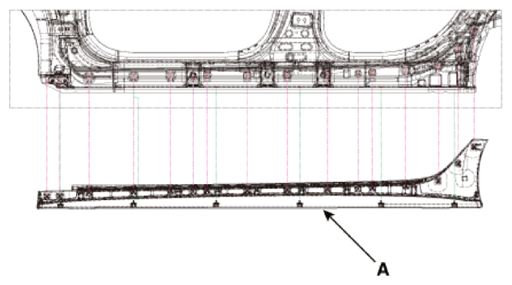

- Using a remover and remove the side sill molding (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips.
