Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

Remove the front tire.

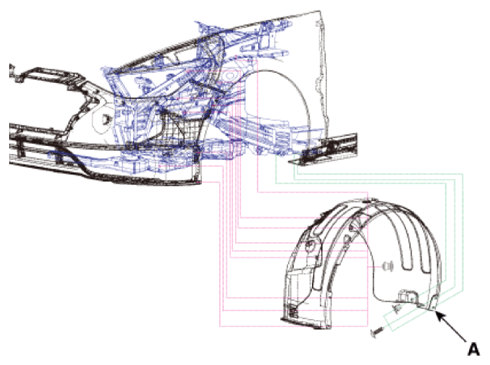

Loosen the mounting clips, nuts, screws and remove the front wheel guard (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
