Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

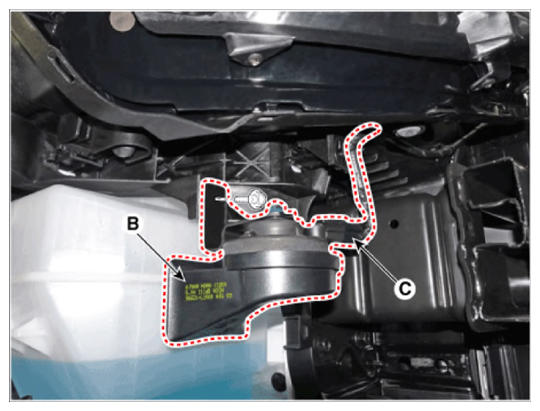

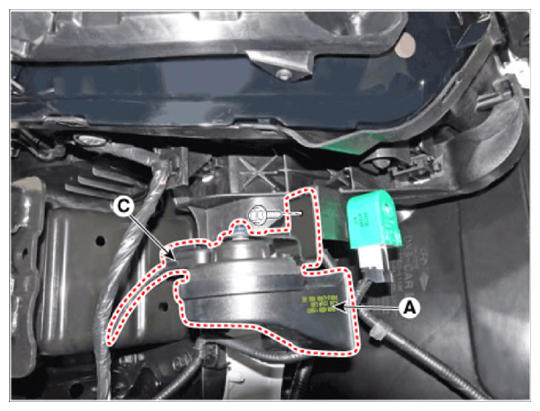

  2. Remove the bolts and disconnect the horn connectors (C), then remove the high pitch horn (B) and low pitch horn (A).
    G14526646Courtesy of HYUNDAI MOTOR AMERICA
    G14526647Courtesy of HYUNDAI MOTOR AMERICA
