Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Daytime Running Lights (Except HEV) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

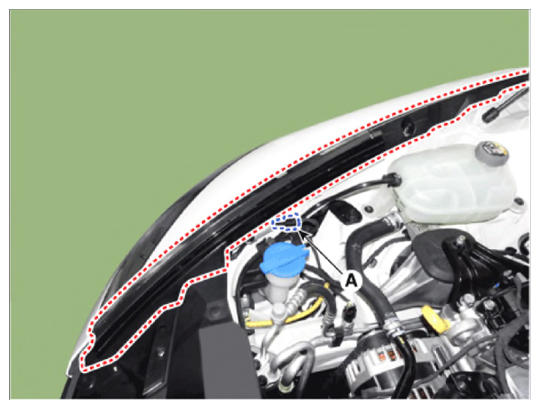

  2. Disconnect the connector (A) and then remove the garnish lamp.
    G14527114Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
    • Take care not to scratch the body surface.

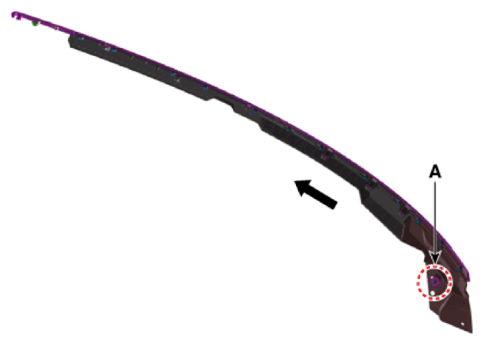

    • Remove the fastener (A) and remove it sequentially in the direction of the arrow.
      G14527115Courtesy of HYUNDAI MOTOR AMERICA
