Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Rear Corner Radar-Left Diagnosis (Except HEV) >> DTC C2703-54: Control Module Slave Missing Calibration >> Troubleshooting >> Diagnostic Flowchart

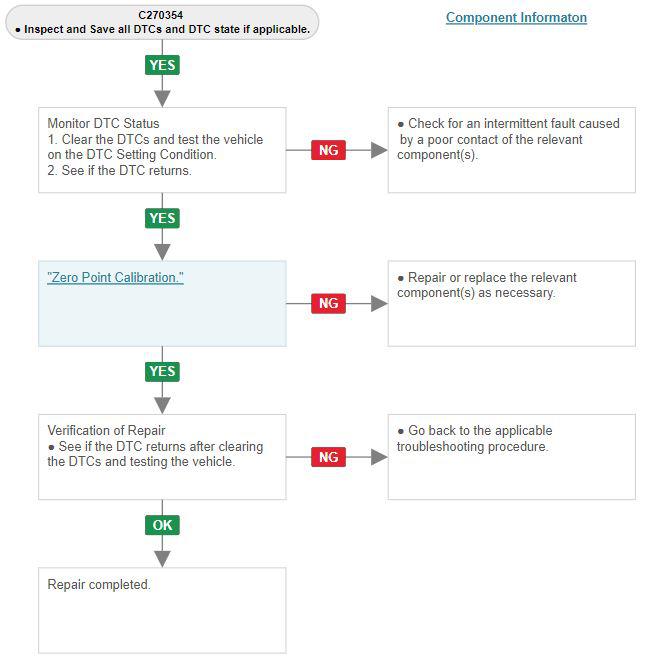

Diagnostic Flowchart

G14532297Courtesy of HYUNDAI MOTOR AMERICA
