Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the cowl side trim.

   (Refer to "COWL SIDE TRIM ")

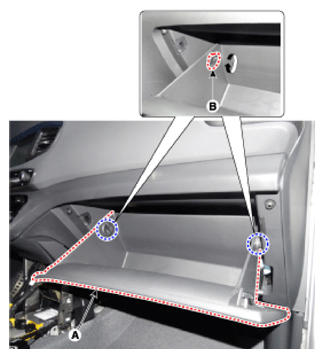

2. Remove both stoppers (B) from the glove box (A) by turning the stoppers.

   Courtesy of HYUNDAI MOTOR AMERICA

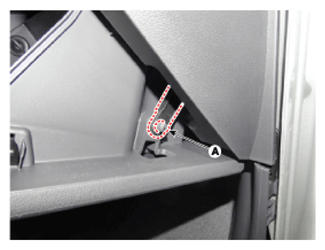

3. Separate the air damper from the glove box (A).

   Courtesy of HYUNDAI MOTOR AMERICA

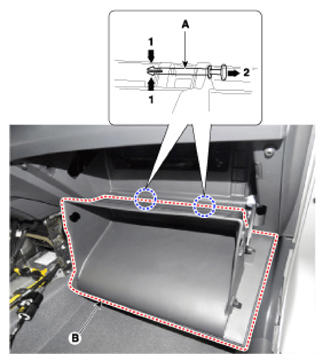

4. Disconnect the pushpins (A) and then remove the glove box (B).

   Courtesy of HYUNDAI MOTOR AMERICA

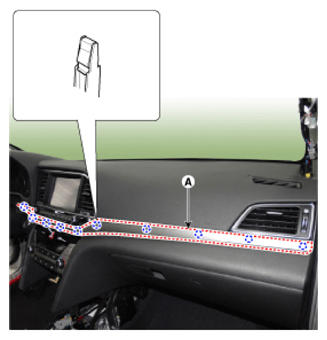

5. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

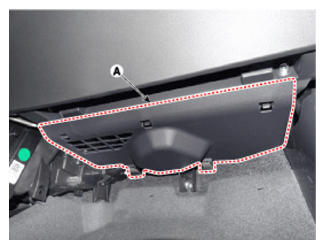

6. Using a screwdriver or remover, remove the crash pad under cover [RH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

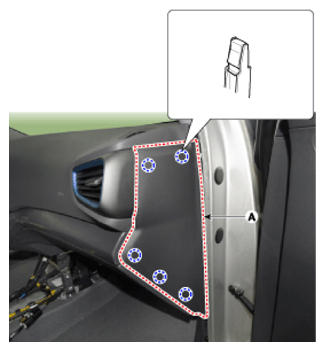

7. Loosen the mounting screws and remove the crash pad side garnish [RH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

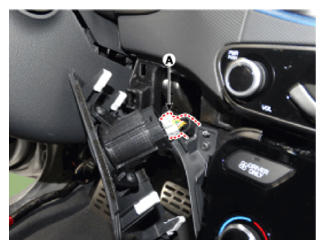

8. Disconnect the start button connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

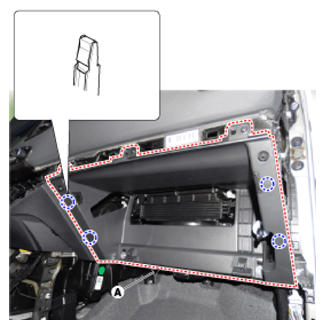

9. After loosening the mounting screws and nuts, remove the glove box upper cover assembly (A).

   Courtesy of HYUNDAI MOTOR AMERICA

10. To install, reverse the removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin-type retainers).
