Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

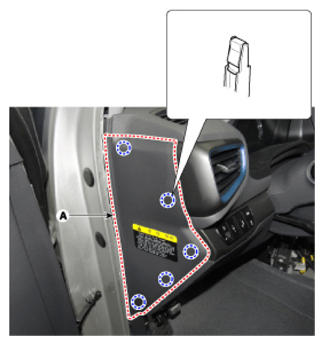

Using a screwdriver or remover, remove the crash pad side cover (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

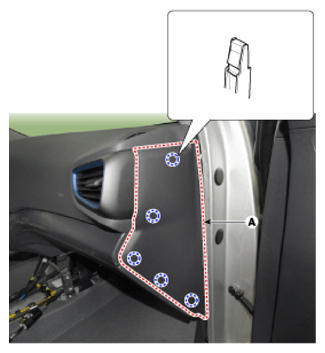

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
