Monitor GDS Data

  1. Ignition "OFF", connect GDS.
  2. Ignition "ON"& Engine "OFF", select "Current Data  " mode.
  3. Monitor the "Passenger Buckle Switch status" parameter on the GDS.

    Specification:  Passenger Buckle Switch on: Buckled, Passenger Buckle Switch off: Unbuckled

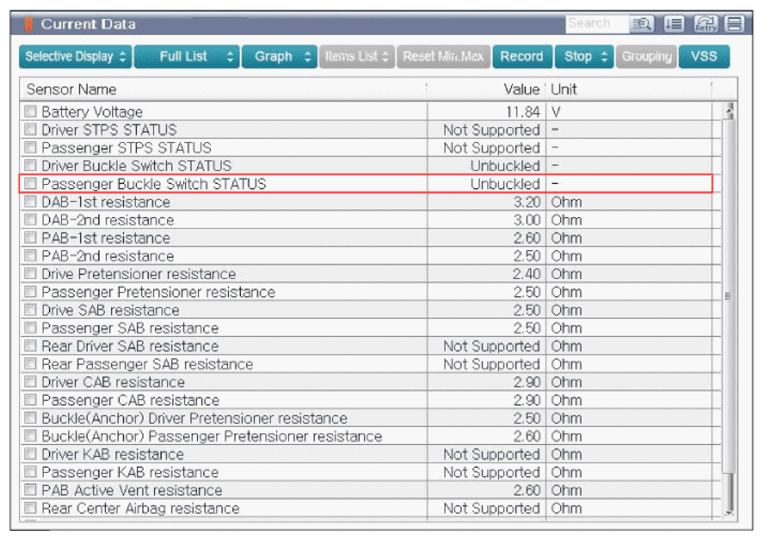

    G12604266Courtesy of HYUNDAI MOTOR AMERICA

    Fig.1) Unbuckled Data

  4. Is parameter displayed within specifications?

    Yes

    • Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    • Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
