Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes (DTC)  " mode.
  3. Monitor diagnostic trouble code and present of trouble code.
  4. Using a GDS, clear the DTC.
  5. Adults needs to be sat down on the passenger seat.
  6. Monitor the "PAB Real Time Information Of "Current Data  " parameter on the GDS.
    G12604255Courtesy of HYUNDAI MOTOR AMERICA

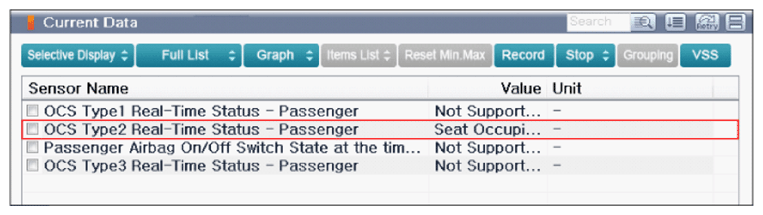

    Fig.1) PAB Real Time Status Of Current Data: Occupant.

  7. Are the parameters displayed correctly?

    Yes

    • Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
    • Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.

    No
