Monitor GDS Data
- Ignition "OFF", connect GDS.
- Ignition "ON" & Engine "OFF", select "Current Data " mode.

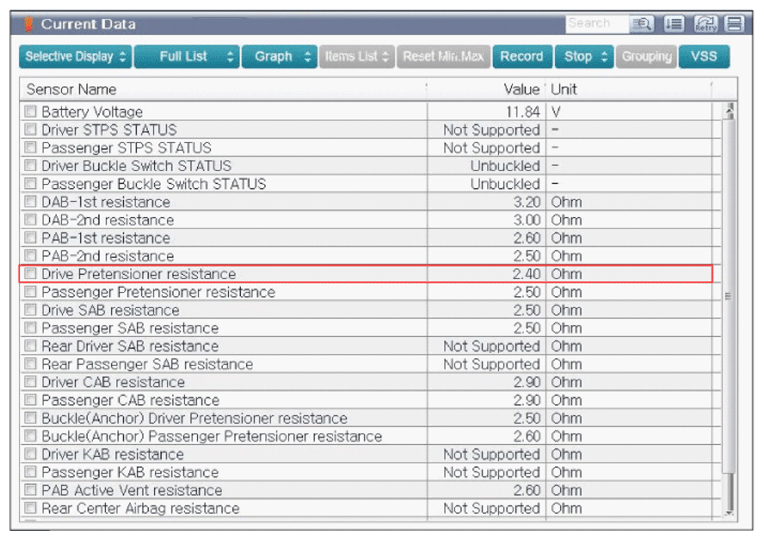

- Monitor the "Pretensioner front-Driver resistance" parameter on the GDS.
Specification: Resistance of Pretensioner front-Driver is between 1.6Ω and 6Ω
Reference:
In a case of an open in the Pretensioner front-Driver circuit: FAIL
In a case of a short to battery in the Pretensioner front-Driver circuit: FAIL
In a case of a short to ground in the Pretensioner front-Driver circuit: FAIL
- Is parameter displayed within specifications?
Yes
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
Thoroughly check shorting bar/shorting bar release pin and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.
No
- Go to "Wiring Inspection " procedure.
- Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
