Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Loosen the drain plug and drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
Remove the cooling fan.
(Refer to Cooling System - "COOLING FAN ")
Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")

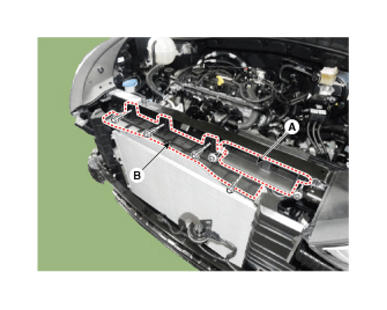

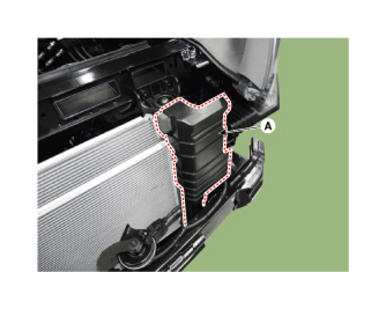

Remove the air duct shield (A).
Remove the radiator upper air guard (B).
Tightening torque: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

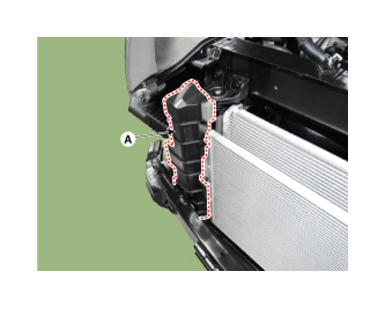

Remove the air guards (A).
[RH]

Courtesy of HYUNDAI MOTOR AMERICA

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

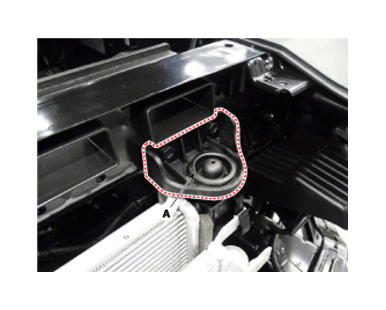

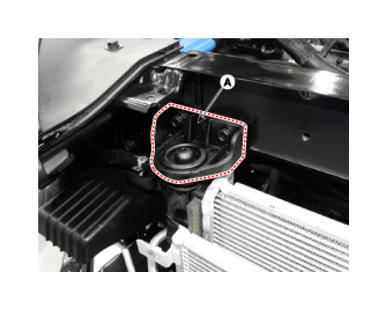

Remove the radiator upper mounting brackets (A).
Tightening torque: 7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

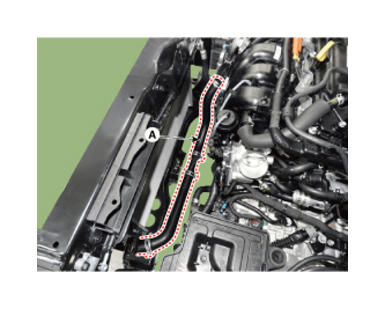

Remove the over flow hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

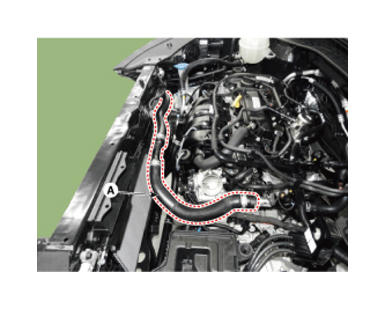

Remove the radiator upper hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

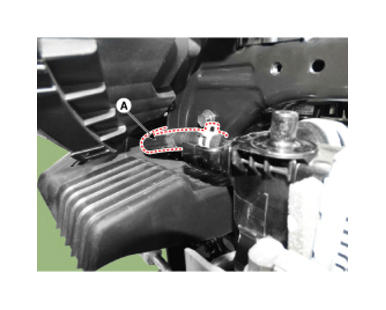

Remove the radiator lower hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

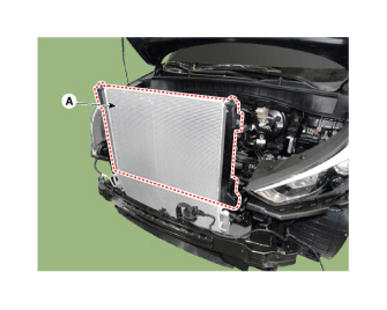

Remove the A/C condenser from the radiator assembly and then lift up the radiator assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Fill the radiator with coolant and check for leaks.
NOTE:
- Bleed air from the cooling system.
NOTE:
- Start engine and let it run until it warms up. (Until the radiator fan operates 3 or 4 times.)
- Turn off engine. Check the coolant level and add coolant if needed. This will allow trapped air to be removed from the cooling system.
- Put the radiator cap on tightly, then run engine again and check for leaks.
