Section 8 (Engine Cooling System - 2.0L)
>>
Cooling Fan
>>
Schematic Diagrams
>>

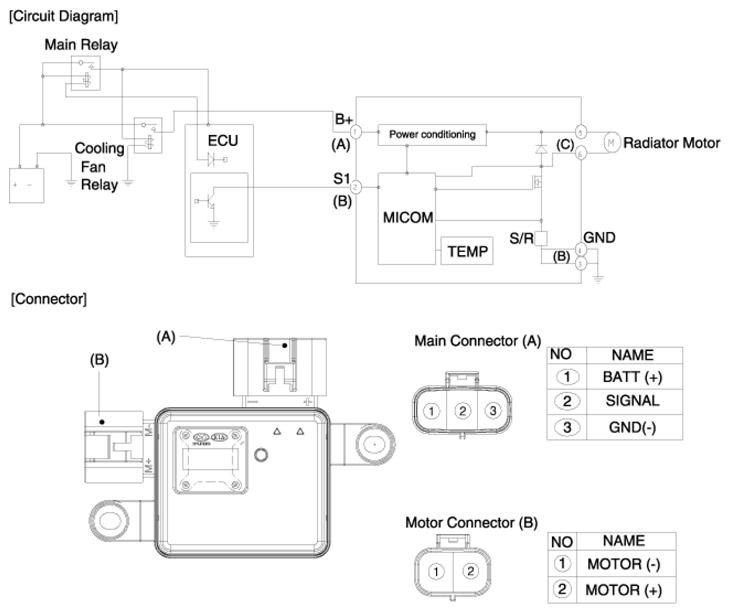

Circuit Diagram

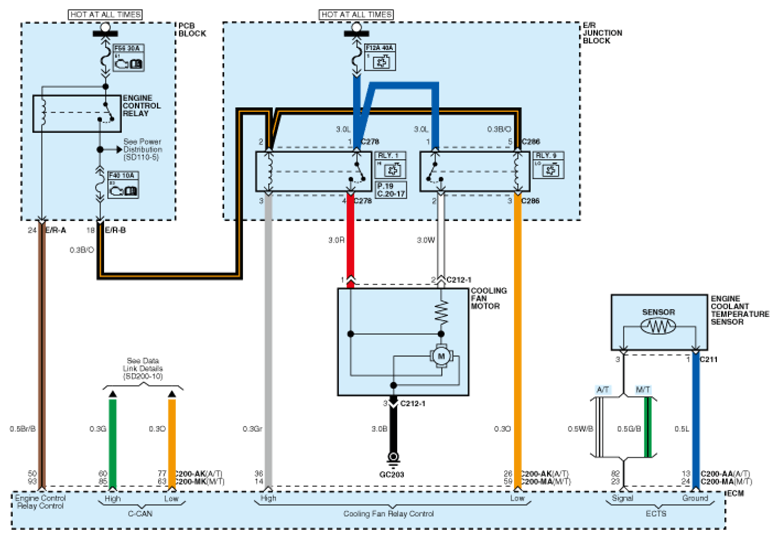

Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
