Cooling Fan Controller (PWM)
WARNING: This page is about a different variant/trim than selected.

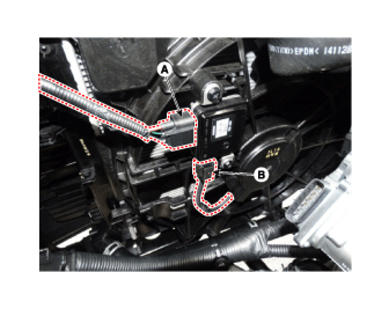

- Disconnect the wire harness connector (A) and the fan motor connector (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|

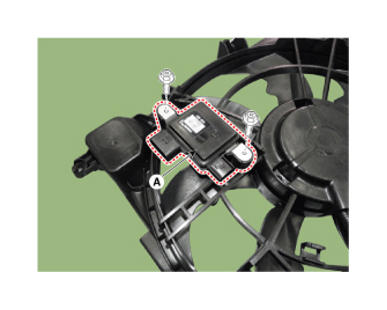

- Remove the PWM (A) from the cooling fan shroud.
Tightening torque:
2.8 ~ 3.2 N.m (0.28 ~ 0.33 kgf.m, 2.1 ~ 2.4 lb-ft)
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
