Repair Procedures: Disassembly
WARNING: This page is about a different variant/trim than selected.

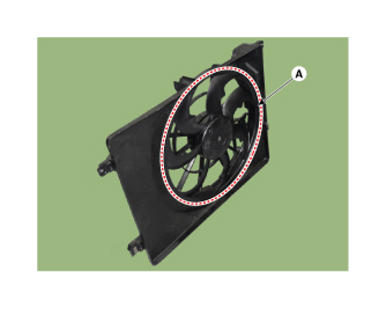

- Remove the cooling fan (A) from the cooling fan assembly.

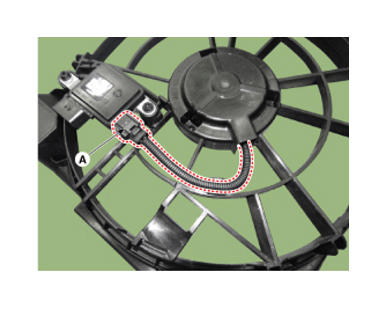

- Disconnect the fan motor connector (A) from the PWM.

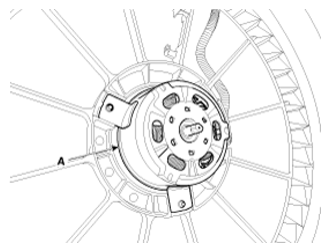

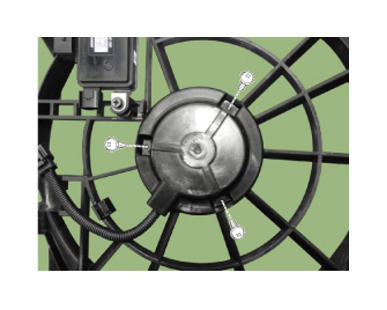

- Loosen the screws and then remove the fan motor (A) from the cooling fan shroud.
Tightening torque: 4.2 ~ 4.7 N.m (0.43 ~ 0.48 kgf.m, 3.1 ~ 3.5 lb-ft)
- Assemble in the reverse order of disassembly.
