Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")

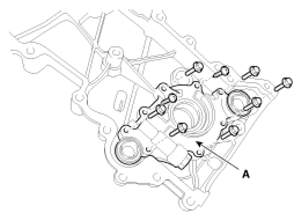

- Remove the oil pump cover (A).
Tightening torque:
Screws:
5.9 ~ 8.8 N.m (0.6 ~ 0.9 kgf.m, 4.3 ~ 6.5 lb-ft)
Bolts:
8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
- Remove the inner rotor (A) and outer rotor (B).
- Install in the reverse order of removal.
