Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
- Remove the oil pan (A).
- Unfasten the bolts.

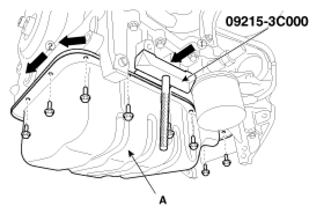

- Insert the blade of SST (09215-3C000) between the lower crankcase and the oil pan. Separate the applied sealer and remove the oil pan.NOTE:
- Loosen one oil pan bolt near each corner of the oil pan leaving the bolts held in by about 2 threads. Then remove all other pan bolts.
NOTE:- Insert the SST between the oil pan and the lower crankcase by tapping it with a plastic hammer in the direction of (1) arrow.
- After tapping the SST with a plastic hammer along the direction of (2) arrow around more than 2/3 edge of the oil pan, remove it from the lower crankcase.
- Do not turn over the SST abruptly without tapping. It is result in damage of the SST.
- Be careful not to damage the contact surfaces of the lower crankcase and the oil pan.
- Remove the oil screen (A) with the gasket (B).
