Section 7 (Lubrication System - 2.0L)
>>

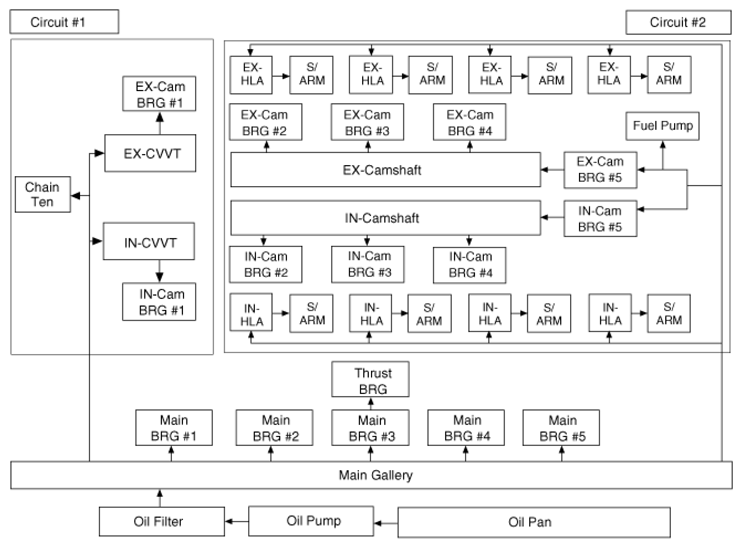

Flow Diagram
>>
Engine Oil Wiring Schematics
Engine Oil Wiring Schematics
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
