Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Engine removal is not required for this procedure.

NOTE:

Use fender covers to avoid damaging painted surfaces.
To avoid damaging the cylinder head, wait until the engine coolant temperature drops below normal temperature (20°C [68°F]) before removing it.
When handling a metal gasket, take care not to fold the gasket or damage the contact surface of the gasket.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

Information

Mark all wiring and hoses to avoid misconnection.
Turn the crankshaft pulley so that the No. 1 piston is at TDC (Top dead center).

Remove the Battery.
(Refer to Engine Electrical System - "BATTERY ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

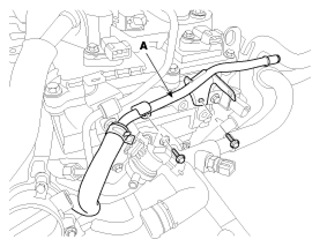

Remove the vacuum pipe (A).
Tightening torque: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the condenser (A).
Tightening torque: 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the high pressure fuel pump.
(Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PUMP ")
Remove the cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")
Remove the timing chain.
(Refer to Timing System - "TIMING CHAIN ")
Remove the exhaust manifold.
(Refer to Intake and Exhaust System - "EXHAUST MANIFOLD ")
Remove the intake manifold.
(Refer to Intake and Exhaust System - "INTAKE MANIFOLD ")
Remove the delivery pipe.
(Refer to Engine Control/Fuel System - "DELIVERY PIPE ")
Remove the water temperature control assembly.
(Refer to Cooling System - "WATER TEMPERATURE CONTROL ASSEMBLY ")

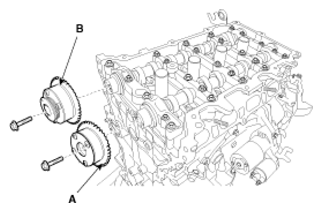

Remove the intake CVVT assembly (A) and exhaust CVVT assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

Information

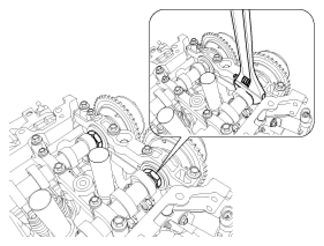

- When removing the CVVT assembly bolt, hold the camshaft with a wrench to prevent the camshaft from rotating.
Courtesy of HYUNDAI MOTOR AMERICA

Remove the camshaft.

Remove the camshaft bearing cap (A) by loosening the bolts in the sequence as shown.

Courtesy of HYUNDAI MOTOR AMERICA

Fig 1: Camshaft Bearing Caps Bolts Loosening Sequence

Courtesy of HYUNDAI MOTOR AMERICA

Remove the camshafts (A).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the cam carrier (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the hydraulic lash adjuster (HLA) (A) and the swing arm (B).

Courtesy of HYUNDAI MOTOR AMERICA

Information
- The HLA and swing arm should be kept together as pairs during storage after removal and reinstallation.

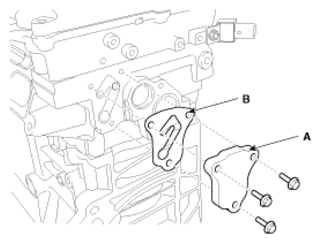

Remove the oil control adapter (A) with the gasket (B).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the intake oil control valve (OCV) (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the exhaust oil control valve (OCV) (A).

Courtesy of HYUNDAI MOTOR AMERICA

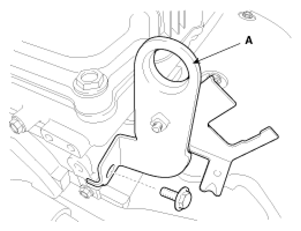

Remove the rear engine hanger (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the spark plugs.
(Refer to Engine Electrical System - "SPARK PLUG ")

Remove the cylinder head.

Using bit socket (12PT), uniformly loosen and remove the cylinder head bolts, in several passes, in the sequence as shown.

Courtesy of HYUNDAI MOTOR AMERICA

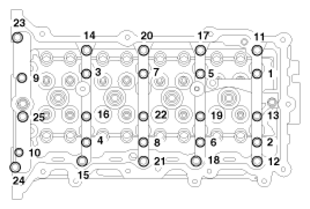

Fig 2: Cylinder Head Bolts Loosening Sequence

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Head warpage or cracking could result from removing bolts in an incorrect order.

Lift the cylinder head (A) from the dowels on the cylinder block and place the cylinder head on wooden blocks on a bench.
NOTE:
- Be careful not to damage the contact surfaces of the cylinder head and cylinder block.

Remove the cylinder head gasket (B).

Courtesy of HYUNDAI MOTOR AMERICA
