Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Thoroughly clean all parts to be assembled.
  • Always use new cylinder head and manifold gaskets.
  • Always use new cylinder head bolts.
  • The cylinder head gasket is a metal gasket. Take care not to bend it.
  • Rotate the crankshaft to set the No. 1 piston at TDC (Top dead center) on compression stroke.

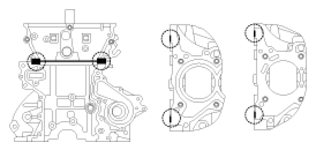

  1. Install the cylinder head gasket (B) on the cylinder block.
    1. Remove hardening sealant, oil, dust, moisture and harmful foreign materials from the cylinder block and the cylinder head.
    2. Apply liquid gasket on the edge of the cylinder block.
    3. Install the cylinder head gasket with the dowel pins of the cylinder block.
    4. Apply liquid gasket on the edge of the cylinder head gasket.

      Information

      • Apply liquid gasket on the edge of the cylinder block and cylinder head gasket.

      Sealant:  Threebond 1217H or equivalent

      G12610519Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Assemble the cylinder head gasket and the cylinder head within 5 minutes after applying sealant.
  2. Place the cylinder head (A) carefully to protect damage to the head gasket during installation.
    G12610520Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the cylinder head bolts with washers.

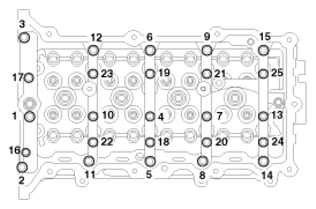

    Using SST (09221-4A000), install and tighten the 10 cylinder head bolts, in several passes, in the sequence as shown.

    Tightening torque  1st step:

    32.4 ~ 36.3 N.m (3.3 ~ 3.7 kgf.m, 23.9 ~ 26.8 lb-ft)

    2nd step: 90~95°

    3rd step: 90~95°

    G12610521Courtesy of HYUNDAI MOTOR AMERICA
    Fig 1: Cylinder Head Bolts Tightening Sequence
    G12610522Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the cylinder head bolts.
    • Do not apply engine oil on the bolt threads to achieve correct torque.
    • Remove the extruded sealant within 5 minutes after installing cylinder head bolts.
    • The engine running or pressure test should not be performed within 30 minutes after installing cylinder head bolts.
    • Be careful not to change the installing position of the preassembled washer bolts and non-preassembled washer bolts.
    • When installing the washer of the non-preassembled washer bolts, the round and chamfer of washers should be faced up.
    G12610523Courtesy of HYUNDAI MOTOR AMERICA

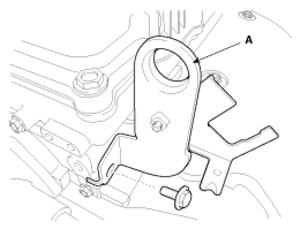

  4. Install the rear engine hanger (A).

    Tightening torque:  34.3 ~ 39.2 N.m (3.5 ~ 4.0 kgf.m, 25.3 ~ 28.9 lb-ft)

    G12610524Courtesy of HYUNDAI MOTOR AMERICA
  5. Install the exhaust oil control valve (OCV) (A).

    Tightening torque:  9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    G12610525Courtesy of HYUNDAI MOTOR AMERICA
  6. Install the intake oil control valve (OCV) (A).

    Tightening torque:  9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    G12610526Courtesy of HYUNDAI MOTOR AMERICA

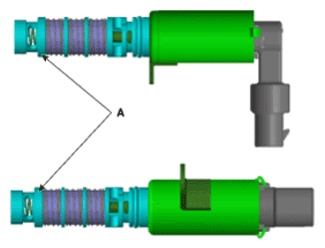

    NOTE:
    • Do not reuse the OCV when dropped.
    • Keep the OCV filter clean.
    • Do not hold the OCV sleeve (A) during servicing.
    • When the OCV is installed on the engine, do not move the engine with holding the OCV yoke.
    G12610527Courtesy of HYUNDAI MOTOR AMERICA

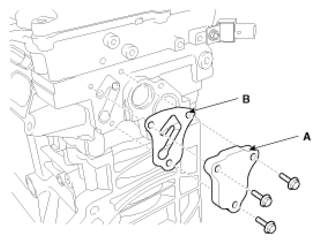

  7. Install the oil control adapter (A) with a new gasket (B).

    Tightening torque:  9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    G12610528Courtesy of HYUNDAI MOTOR AMERICA
  8. Install the water temperature control assembly.

    (Refer to Cooling System - "WATER TEMPERATURE CONTROL ASSEMBLY ")

  9. Install the hydraulic lash adjuster (HLA) (A) and the swing arm (B).
    G12610529Courtesy of HYUNDAI MOTOR AMERICA
    1. When installing HLA, it should be held upright so that engine oil in HLA may not spill and assured that dust does not adhere to HLA.
    2. HLA should be inserted carefully to the cylinder head not to spill engine oil.
      NOTE:
      • In case of spilling, air bleed should be done in accordance with the air bleed procedure. Stroke HLA in diesel oil 4~5 times by pushing its cap while pushing the ball down slightly with a hard steel wire. (Take care not to severely push a hard steel wire down since ball is several grams.)
    G12610530Courtesy of HYUNDAI MOTOR AMERICA
  10. Install the cam carrier.
    1. Using a gasket scraper, remove all the old packing material from the gasket surfaces.
    2. The sealant locations on the cam carrier and the cylinder head must be free of harmful foreign materials, oil, dust and moisture. Spray cleaner on the surface and wipe with a clean duster.

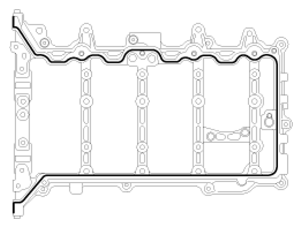

    3. After applying liquid sealant on the bottom surface of the cam carrier, assemble the cam carrier. Continuous bead of sealant should be applied to prevent any path from oil leakage.

      Bead width:  2.5 ~ 3.5 mm (0.10 ~ 0.14 in.)

      Sealant:  Threebond 1217H or equivalent

      G12610531Courtesy of HYUNDAI MOTOR AMERICA
    4. Place the cam carrier (A) on the cylinder head. The dowel pins on the cam carrier and holes on the cylinder head should be used as a reference in order to assemble the cam carrier in exact position.
    5. Fasten the cam carrier bolts.

      Tightening torque:  18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

      G12610532Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Assemble the cam carrier within 5 minutes after applying sealant.
      • Assemble the camshaft bearing cap within 5 minutes after assembling the cam carrier.
      • The engine running or pressure test should not be performed within 30 minutes after assembling the cam carrier.
  11. Install the camshafts.
    1. Place the intake and exhaust camshafts (A) on the cam carrier.
      G12610533Courtesy of HYUNDAI MOTOR AMERICA
    2. Install the camshaft bearing cap (A).
      G12610534Courtesy of HYUNDAI MOTOR AMERICA

      Tighten the bolts, in several passes, in the sequence as shown.

      Tightening torque  M6 bolts:

      11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

      M8 bolts:

      18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

      Fig 2: Camshaft Bearing Cap Bolts Tightening Sequence
      G12610535Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Be careful not to change the position and direction of bearing caps.

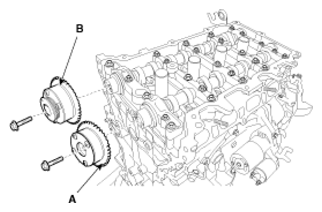

  12. Install the intake CVVT assembly (A) and exhaust CVVT assembly (B).

    Tightening torque:  64.7 ~ 76.5 N.m (6.6 ~ 7.8 kgf.m, 47.7 ~ 56.4 lb-ft)

    G12610536Courtesy of HYUNDAI MOTOR AMERICA

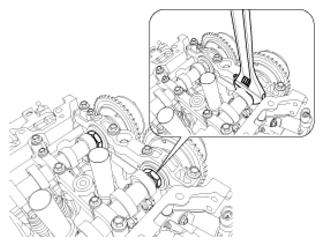

    Information

    • When removing the CVVT assembly bolt, hold the camshaft with a wrench to prevent the camshaft from rotating.
    G12610537Courtesy of HYUNDAI MOTOR AMERICA
  13. Install the other parts reverse order of removal.
  14. Add all the necessary fluids and check for leaks. Connect GDS. Check for codes, note, and clear. Recheck.
    NOTE:
    • Refill engine with engine oil.
    • Refill a radiator and a reservoir tank with engine coolant.
    • Clean battery posts and cable terminals and assemble.
    • Inspect for fuel leakage.
    • After assembling the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
    • Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
    • Bleed air from the cooling system.
    • Start engine and let it run until it warms up (until the radiator fan operates 3 or 4 times).
    • Turn off the engine. Check the level in the radiator, add coolant if needed. This will allow trapped air to be removed from the cooling system.
    • Put radiator cap on tightly, then run the engine again and check for leaks.
