Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Identify, valves and valve springs as they are removed so that each item can be reinstalled in its original position.
  1. Remove the valves.

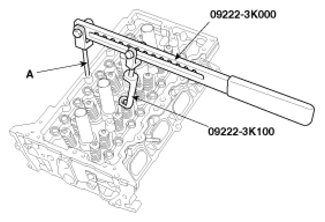

    1. Using the SST (09222-3K000, 09222-3K100), compress the valve spring and remove the retainer lock (A).

      Information

      • When installing the SST, insert the front support (A) directly into the bolt hole on the cylinder head.
      G12610507Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Do not press valve retainer more than 12 mm (0.47 in.).
    2. Remove the spring retainer (B).
    3. Remove the valve spring (C).
    4. Remove the valve (D).
    5. Using needle-nose pliers, remove the valve stem seal (E).
      G12610508Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Do not reuse the valve stem seals.
