Operation Principle: Notes

WARNING: This page is about a different variant/trim than selected.

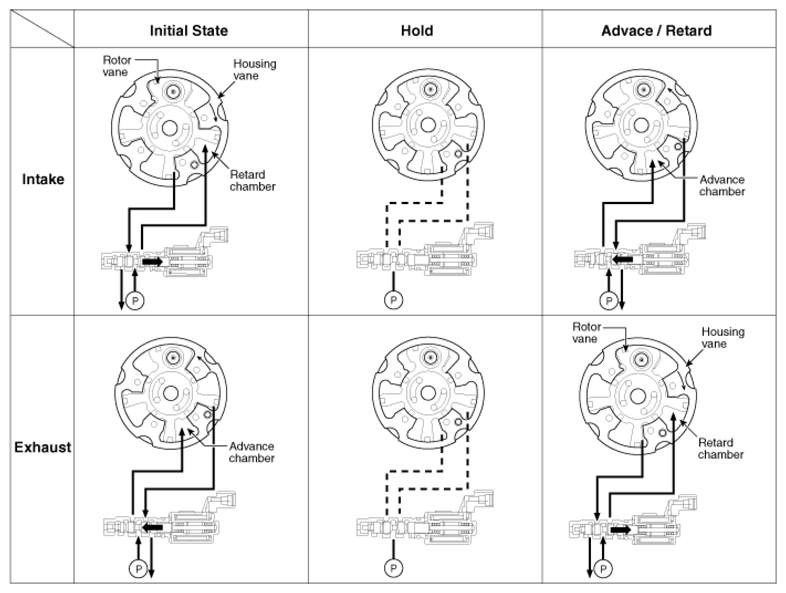

The CVVT has the mechanism rotating the rotor vane with hydraulic force generated by the engine oil supplied to the advance or retard chamber in accordance with the CVVT oil control valve control.

G12610459Courtesy of HYUNDAI MOTOR AMERICA
