Removal and Installation

WARNING: This page is about a different variant/trim than selected.

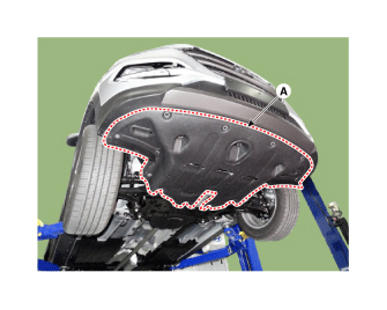

  1. Remove the engine room under cover (A).

    Tightening torque:  7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

    G12610374Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
