Roll Rod Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

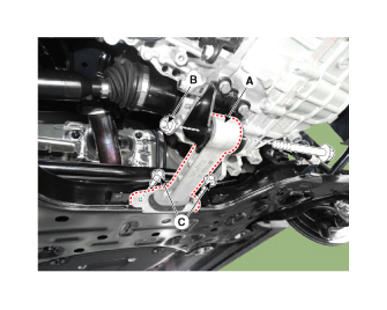

Remove the roll rod bracket (A).
Tightening torque Nut (B):

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

Bolts (C):

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

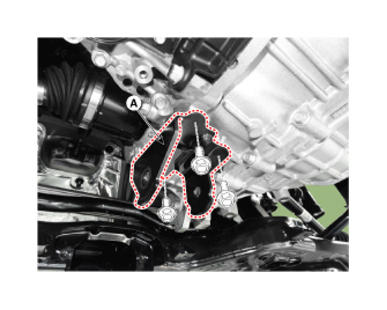

Remove the roll rod mounting support bracket (A).
Tightening torque: 49.0 ~ 68.6 N.m (5.0 ~ 7.0 kgf.m, 36.2 ~ 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
