Engine Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Install the jack to the edge of oil pan to support the engine.
NOTE:
- Insert the rubber block between jack and oil pan.

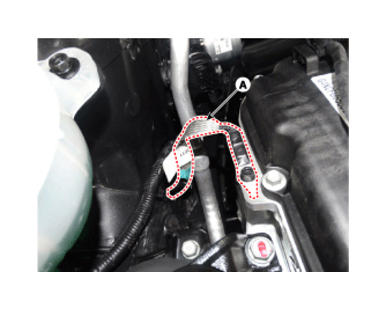

Disconnect the ground cable (A).
Tightening torque: 10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~ 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

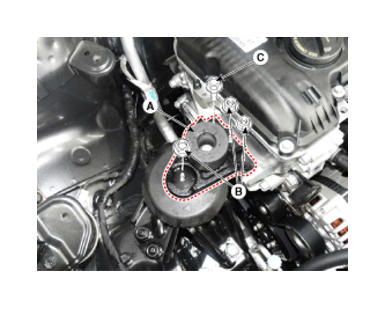

Remove the engine mounting support bracket (A).
Tightening torque: Nuts (B), bolt (C)

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA

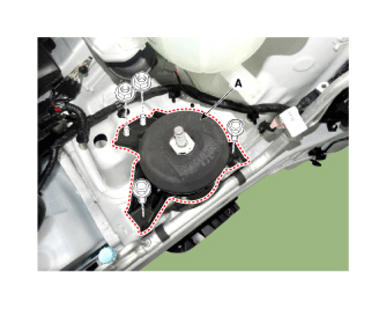

Remove the engine mounting bracket (A).
Tightening torque: 63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
