Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt.

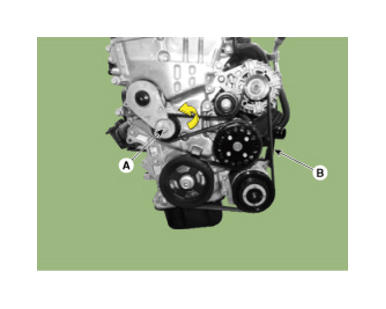

    1. Disconnect the drive belt (B) by turning the drive belt tensioner (A) counterclockwise.
      G12610403Courtesy of HYUNDAI MOTOR AMERICA

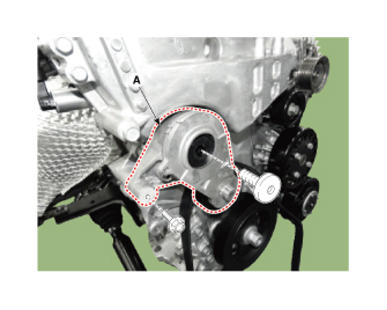

    2. After removing the drive belt tensioner (A), remove the drive belt.
      G12610404Courtesy of HYUNDAI MOTOR AMERICA
