Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the drive belt.
    1. Install the drive belt to the drive belt tensioner.

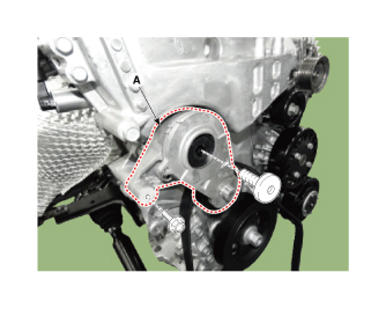

    2. Install the drive belt tensioner (A).
      G12610406Courtesy of HYUNDAI MOTOR AMERICA

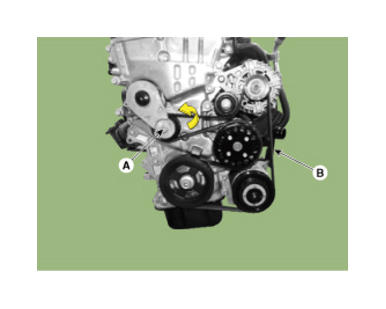

    3. Connect the drive belt (B) by turning the drive belt tensioner (A) counterclockwise.
      Fig 1: Engine Drive Belt Routing Diagram
      G12610407Courtesy of HYUNDAI MOTOR AMERICA
