Removal and Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the drive belt.
(Refer to Timing System - "DRIVE BELT ")

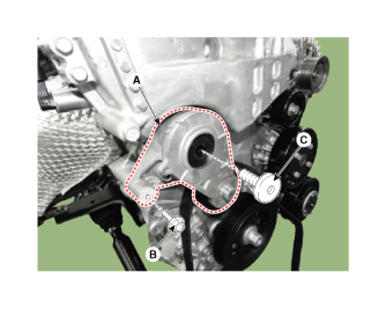

- Remove the drive belt tensioner (A).
Tightening torque Bolt (B):
39.2 ~ 49.0 N.m (4.0 ~ 5.0 kgf.m, 28.9 ~ 36.2 lb-ft)
Bolt (C):
29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7~ 30.4 lb-ft)
- Install in the reverse order of removal.
