Valve Clearance Inspection and Adjustment

(Refer to Cylinder Head Assembly - "Cylinder Head Cover ")

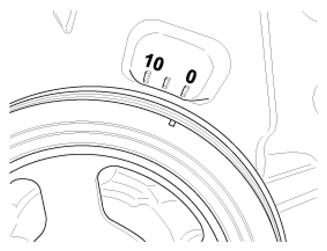

1. Turn the crankshaft pulley and align its groove with the timing mark of the timing chain cover.

   Courtesy of HYUNDAI MOTOR AMERICA

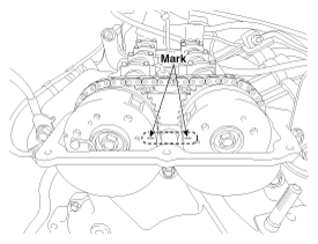

2. Check that the marks of the intake and exhaust CVVT sprockets are in straight line on the cylinder head surface as shown. If not, turn the crankshaft one revolution (360°).

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Do not turn the crankshaft damper pulley counterclockwise.

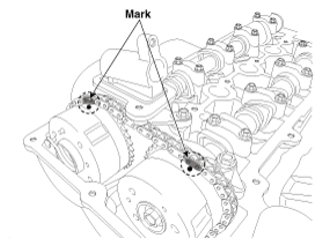

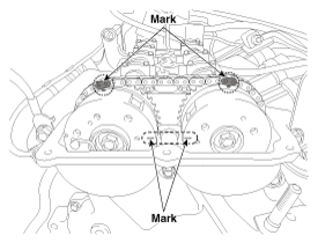

3. Mark the timing chain links corresponding to the timing marks on the CVVT sprockets with a indelible marker.

   Courtesy of HYUNDAI MOTOR AMERICA

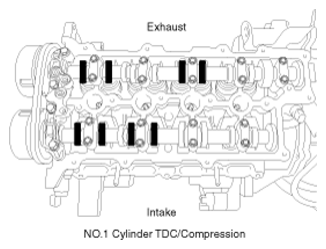

1. Check only the intake valves of the 1st and 2nd cylinders and exhaust valves of the 1st and 3rd cylinders for their clearance.
   • Using a thickness gauge, measure the clearance between the tappet and the base circle of camshaft.

     Courtesy of HYUNDAI MOTOR AMERICA

   • Record the out-of-specification valve clearance measurements. They will be used later to determine the required tappet for adjusting.

   Valve clearance specification (Engine coolant temperature: 20°C [68°F])

   Limit

   Intake: 0.17 ~ 0.23 mm (0.0067 ~ 0.0091 in.)

   Exhaust: 0.22 ~ 0.28 mm (0.0087 ~ 0.0110 in.)

2. Turn the crankshaft pulley one revolution (clockwise 360°) and align its groove with timing mark of the timing chain cover.

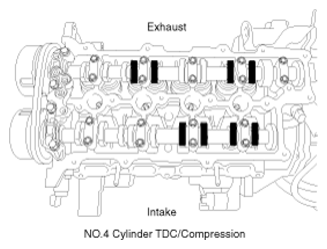

3. Check the intake valves of the 3rd and 4th cylinders and exhaust valves of the 2nd and 4th cylinders for their clearance.

   Courtesy of HYUNDAI MOTOR AMERICA

1. Put a jack under the oil pan.
   NOTE:

   • Place a wooden block between the jack and the oil pan to prevent damage to the oil pan.

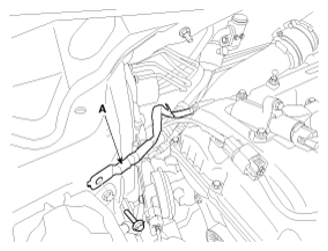

2. Disconnect the engine ground cable (A).

   Courtesy of HYUNDAI MOTOR AMERICA

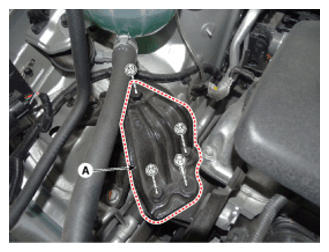

3. Remove the engine mounting support bracket (A).

   Courtesy of HYUNDAI MOTOR AMERICA

4. Lift the engine slightly using the jack to obtain space for releasing the timing chain tensioner.

1. Remove the bolt (A) from the service hole in the timing chain cover.

   Courtesy of HYUNDAI MOTOR AMERICA

2. Lock the timing chain tensioner in the fully retracted position.

   Insert a pick into the service hole in the timing chain cover and lower the hole in the left side of the ratchet plate (A) on the tensioner to allow the pawl (B: located inside the tensioner behind the ratchet plate) to be lifted.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

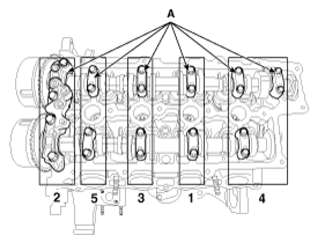

3. Remove the camshaft bearing caps (A) with the order below.
   Fig 1: Camshaft Bearing Caps Bolts (Loosening Sequence)

   Courtesy of HYUNDAI MOTOR AMERICA
4. With the pawl lifted, have a helper pull up the exhaust CVVT & camshaft (A) to allow the tensioner plunger (B) to retract.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

5. With the tensioner plunger in the fully retracted position, raise the hole in the left side of the ratchet plate (A) again through the service hole in the chain cover to align the ratchet plate hole with the hole in the tensioner body behind the ratchet plate, then lock the tensioner by inserting the pick through the ratchet plate and tensioner body holes.

   Courtesy of HYUNDAI MOTOR AMERICA

6. Separate the exhaust camshaft (A) from the exhaust CVVT by removing the bolt.

   Courtesy of HYUNDAI MOTOR AMERICA

7. Remove the exhaust CVVT (A) from the timing chain.

   Courtesy of HYUNDAI MOTOR AMERICA

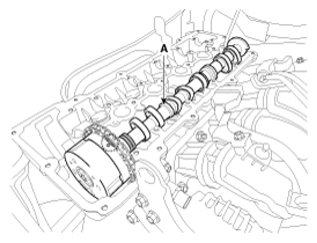

8. Remove the intake CVVT & camshaft (A).

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • Fasten the timing chain to the engine hanger with a cable tie or strap not to allow the timing chain to fall down when removing the intake CVVT & camshaft.

   Courtesy of HYUNDAI MOTOR AMERICA

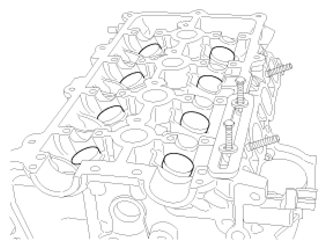

9. Remove the tappet(s) in out-of-specification valve clearance from the cylinder head.

   Courtesy of HYUNDAI MOTOR AMERICA

10. Measure the thickness of the removed tappet using a micrometer.

    Courtesy of HYUNDAI MOTOR AMERICA

11. Calculate the thickness of a new tappet so that the valve clearance comes within the specified value.

    Valve clearance (Engine coolant temperature: 20°C)

    T: Thickness of removed tappet

    A: Measured valve clearance

    N: Thickness of new tappet

    Intake: N = T + [A - 0.20 mm (0.0079 in.)]

    Exhaust: N = T + [A - 0.25 mm (0.0098 in.)]

12. Select a new tappet with a thickness as close as possible to the calculated value.
    NOTE:

    • Shims are available in 41 size increments of 0.015 mm (0.0006 in.) from 3.00 mm (0.118 in.) to 3.690 mm (0.1417 in.)
13. Place a new tappet on the cylinder head.
14. Install the intake CVVT & camshaft (A), with the timing mark on the intake CVVT sprocket aligned with the mark (painted link) on the timing chain.

    Courtesy of HYUNDAI MOTOR AMERICA

15. Install the exhaust CVVT (A), with the timing mark on the exhaust CVVT sprocket aligned with the mark (painted link) on the timing chain.

    Courtesy of HYUNDAI MOTOR AMERICA

16. Install the exhaust camshaft (A) to the exhaust CVVT.

    Tightening torque:

    63.7 ~ 73.5 N.m (6.5 ~ 7.5 kgf.m, 47.0 ~ 54.2 lb-ft)

17. Remove the pick from the service hole in the timing chain cover.

    Courtesy of HYUNDAI MOTOR AMERICA

18. Check that each timing mark of the intake and exhaust CVVT sprockets is aligned as shown in the picture.

    Courtesy of HYUNDAI MOTOR AMERICA

19. Install the bolt (A) to the service hole in the timing chain cover.

    Tightening torque:

    27.5 ~ 30.4 N.m (2.8 ~ 3.1 kgf.m, 20.3 ~ 22.4 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

20. Install the engine mounting support bracket.
    1. Install the engine mounting support bracket (A).

       Tightening torque:

       88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

       Courtesy of HYUNDAI MOTOR AMERICA

    2. Connect the engine ground cable (A).

       Tightening torque:

       10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~ 10.1 lb-ft)

       Courtesy of HYUNDAI MOTOR AMERICA

    3. Remove the jack from the oil pan.
21. Install the camshaft bearing caps with the order below.

    Tightening torque

    1st step

    M6 bolt:

    5.9 N.m (0.6 kgf.m, 4.3 lb-ft)

    M8 bolt:

    9.8 N.m (1.0 kgf.m, 7.2 lb-ft)

    2nd step

    M6 bolts:

    11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

    M8 bolts:

    18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

    Fig 2: Camshaft Bearing Caps Bolts (Tightening Sequence)

    Courtesy of HYUNDAI MOTOR AMERICA
22. Turn the crankshaft two turns in the operating direction (clockwise) and check that the marks of the intake and exhaust CVVT sprockets are in straight line on the cylinder head surface.

    Courtesy of HYUNDAI MOTOR AMERICA

23. Recheck the valve clearance.

    Valve clearance (Engine coolant temperature: 20°C)

    [Specification]

    Intake: 0.17 ~ 0.23 mm (0.0067 ~ 0.0091 in.)

    Exhaust: 0.22 ~ 0.28 mm (0.0087 ~ 0.0110 in.)

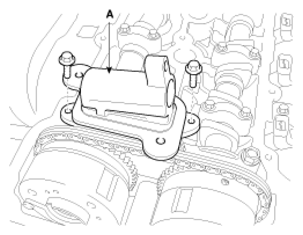

24. Install the exhaust oil control valve (OCV) adaptor (A).

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

25. Install the cylinder head cover.

    (Refer to Cylinder Head Assembly - "Cylinder Head Cover ")
