Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover.
  2. Disconnect the battery negative terminal.
  3. Remove the air clean hose.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  4. Disconnect the engine wiring connector and harness clamp and then remove the cylinder head protector and wiring from engine.
    G12608613Courtesy of HYUNDAI MOTOR AMERICA
  5. Disconnect the exhaust OCV (Oil Control Valve) connector.

    (Refer to Fuel System - "CVVT OIL CONTROL VALVE ")

  6. Disconnect the ignition coil.

    (Refer to Engine Electrical System - "IGNITION COIL ")

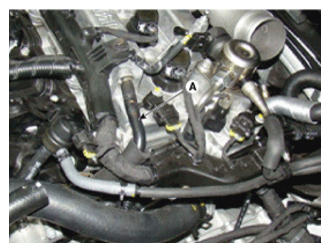

  7. Remove the PCV (Positive Crankcase Ventilation) hose (A).
    G12608614Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the high pressure fuel pump.

    (Refer to Fuel System - "HIGH PRESSURE FUEL PUMP ")

  9. Remove the cylinder head cover (A), gasket (B).
    G12608615Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

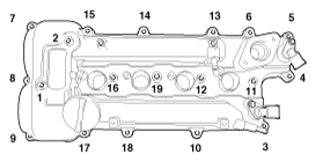

    • Loosen the cylinder head cover bolts with the order and steps.
    Fig 1: Cylinder Head Cover Bolts Loosening Sequence
    G12608616Courtesy of HYUNDAI MOTOR AMERICA
