Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the cylinder head cover.

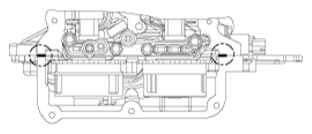

    1. The hardening sealant located on the upper area between timing chain cover and cylinder head should be removed before assembling cylinder head cover.
    2. After applying sealant, it should be assembled within 5 minutes.

      Bead width:  2.0 ~ 3.0 mm (0.07 ~ 0.11 in.)

      Sealant:  LOCTITE 5900H

      G12608617Courtesy of HYUNDAI MOTOR AMERICA
    3. Install the cylinder head cover (A) with a new gasket (B).
      G12608618Courtesy of HYUNDAI MOTOR AMERICA
      CAUTION:
      • Do not reuse the disassembled gasket.
    4. Tighten the cylinder head cover bolts with the order and steps.

      Tightening torque

      1st step:

      3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

      2nd step: 7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)

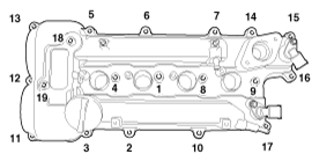

      Fig 1: Cylinder Head Cover Bolts Tightening Sequence
      G12608619Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
