Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

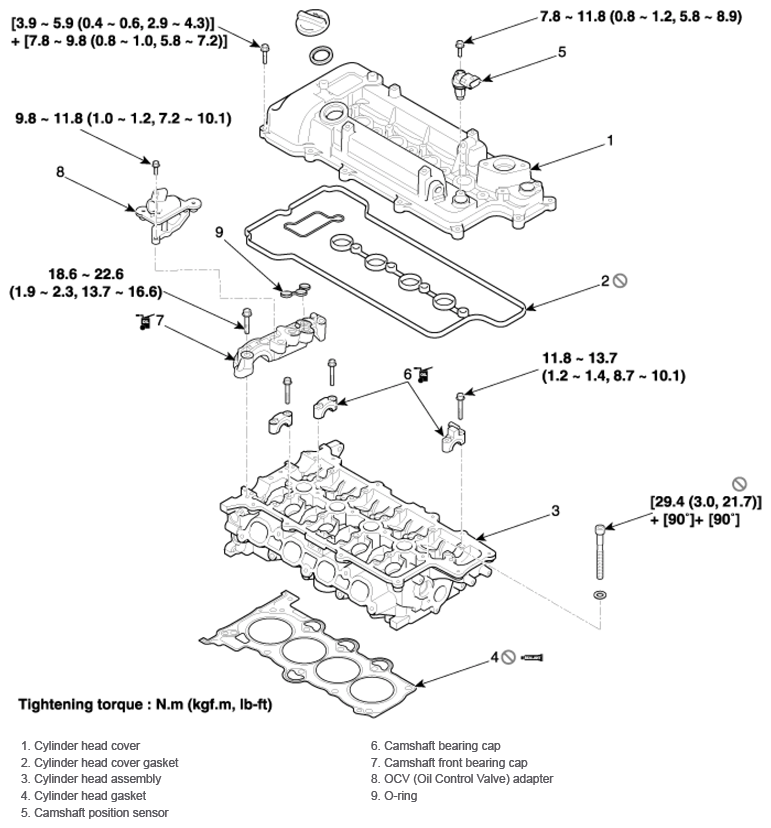

Fig 1: Exploded View Of Cylinder Head Assembly Components With Torque Specification (1 Of 2)
G12608579Courtesy of HYUNDAI MOTOR AMERICA

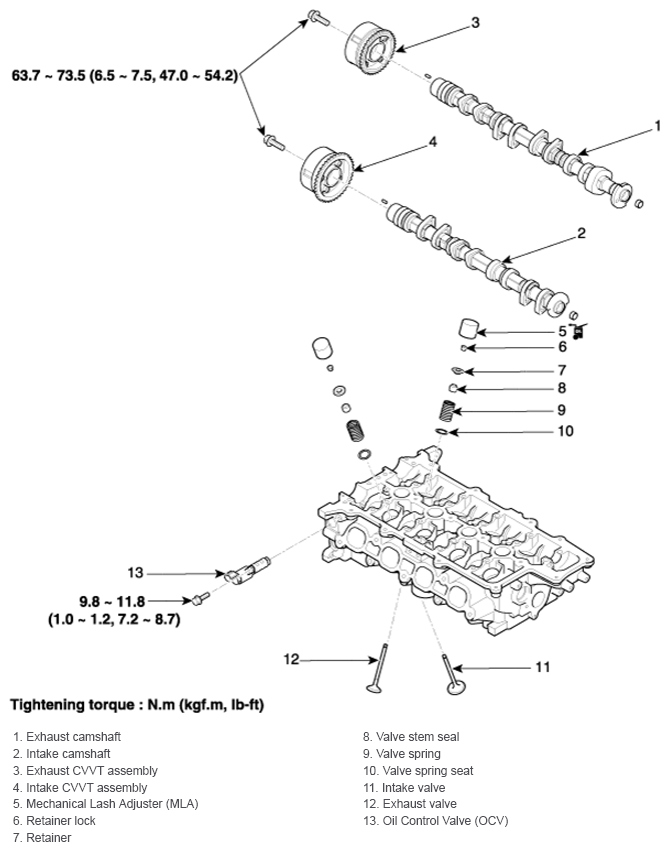

Fig 2: Exploded View Of Cylinder Head Assembly Components With Torque Specification (2 Of 2)
G12608580Courtesy of HYUNDAI MOTOR AMERICA
