Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the cylinder head cover.
(Refer to Cylinder Head Assembly - "Cylinder Head Cover ")

Turn the crankshaft damper pulley so that No. 1 piston is at top dead center.

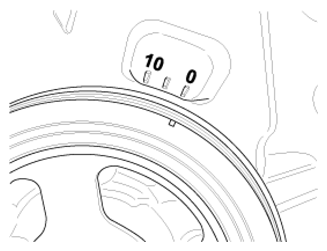

Turn the crankshaft damper pulley and align its groove with the timing mark on the timing chain cover (0° mark on the timing scale).

Courtesy of HYUNDAI MOTOR AMERICA

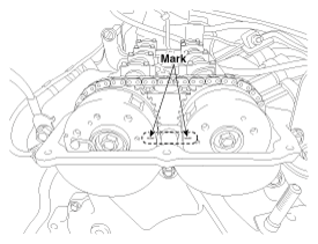

Check that the TDC timing marks on the intake and exhaust CVVT sprockets are in a straight line on the cylinder head surface as shown in the picture. If not, turn the crankshaft damper pulley by one revolution (360°).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Do not turn the crankshaft damper pulley counterclockwise.

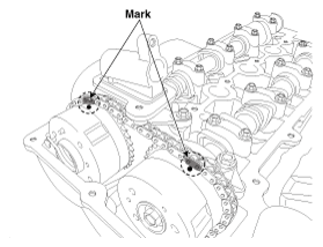

Mark the timing chain links corresponding to the timing marks on the CVVT sprockets with a indelible marker.

Courtesy of HYUNDAI MOTOR AMERICA

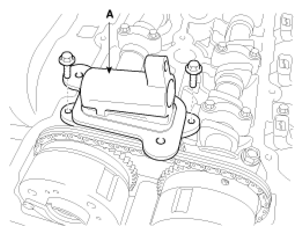

Remove the exhaust oil control valve (OCV) adaptor (A).

Courtesy of HYUNDAI MOTOR AMERICA

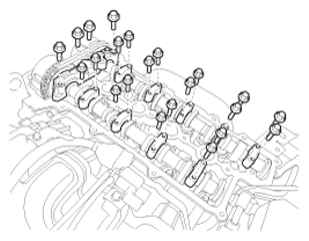

Remove the camshaft bearing caps (A) in the order shown in the picture.

Courtesy of HYUNDAI MOTOR AMERICA

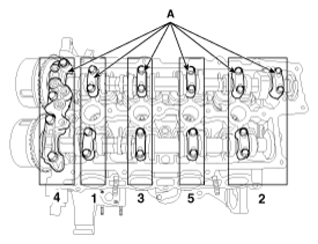

Fig 1: Camshaft Bearing Caps Bolts Loosening Sequence
Courtesy of HYUNDAI MOTOR AMERICA

Remove the engine mounting support bracket.

Put a jack under the oil pan.
NOTE:
- Place a wooden block between the jack and the oil pan to prevent damage to the oil pan.

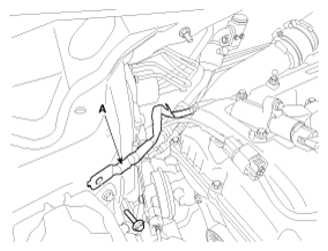

Disconnect the engine ground cable (A).

Courtesy of HYUNDAI MOTOR AMERICA

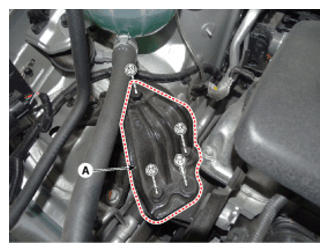

Remove the engine mounting support bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

Lift the engine slightly using the jack to obtain space for releasing the timing chain tensioner.

Remove the bolt (A) from the service hole in the timing chain cover.

Courtesy of HYUNDAI MOTOR AMERICA

Lock the timing chain tensioner in the fully retracted position.

Insert a pick into the service hole in the timing chain cover and lower the hole in the left side of the ratchet plate (A) on the tensioner to allow the pawl (B: located inside the tensioner behind the ratchet plate) to be lifted.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

With the pawl lifted, have a helper pull up the exhaust CVVT & camshaft (A) to allow the tensioner plunger (B) to retract.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

With the tensioner plunger in the fully retracted position, raise the hole in the left side of the ratchet plate (A) again through the service hole in the chain cover to align the ratchet plate hole with the hole in the tensioner body behind the ratchet plate, then lock the tensioner by inserting the pick through the ratchet plate and tensioner body holes.

Courtesy of HYUNDAI MOTOR AMERICA

Separate the exhaust camshaft (A) from the exhaust CVVT by removing the bolt.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the exhaust CVVT (A) from the timing chain.

Courtesy of HYUNDAI MOTOR AMERICA

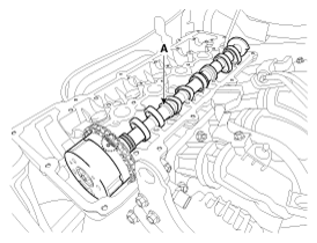

Remove the intake CVVT & camshaft (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Fasten the timing chain to the engine hanger with a cable tie or strap not to allow the timing chain to fall down when removing the intake CVVT & camshaft.
Courtesy of HYUNDAI MOTOR AMERICA
Remove the intake CVVT (A) from the intake camshaft (B).

Courtesy of HYUNDAI MOTOR AMERICA

information
- When removing the CVVT bolt, hold the hexagonal portion (B) on the camshaft with a wrench to prevent the camshaft from rotating.
