Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install the intake CVVT (A) to the intake camshaft.
Tightening torque:

63.7 ~ 73.5 N.m (6.5 ~ 7.5 kgf.m, 47.0 ~ 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

information
- When installing the CVVT bolt, hold the hexagonal portion (B) on the camshaft with a wrench to prevent the camshaft from rotating.
Install the intake CVVT & camshaft (A), with the timing mark on the intake CVVT sprocket aligned with the mark (painted link) on the timing chain.

Courtesy of HYUNDAI MOTOR AMERICA
Install the exhaust CVVT (A), with the timing mark on the exhaust CVVT sprocket aligned with the mark (painted link) on the timing chain.

Courtesy of HYUNDAI MOTOR AMERICA

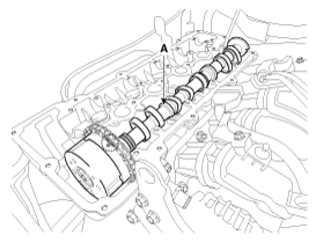

Install the exhaust camshaft (A) to the exhaust CVVT.
Tightening torque:

63.7 ~ 73.5 N.m (6.5 ~ 7.5 kgf.m, 47.0 ~ 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the pick from the service hole in the timing chain cover.

Courtesy of HYUNDAI MOTOR AMERICA

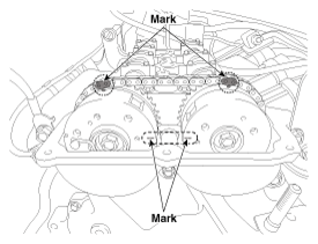

Check that each timing mark of the intake and exhaust CVVT sprockets is aligned as shown in the picture.

Courtesy of HYUNDAI MOTOR AMERICA
Install the bolt (A) to the service hole in the timing chain cover.
Tightening torque:

27.5 ~ 30.4 N.m (2.8 ~ 3.1 kgf.m, 20.3 ~ 22.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Install the engine mounting support bracket.

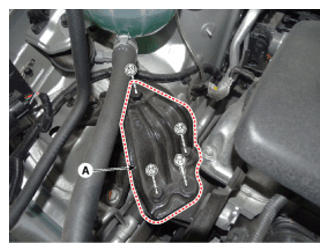

Install the engine mounting support bracket (A).

Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

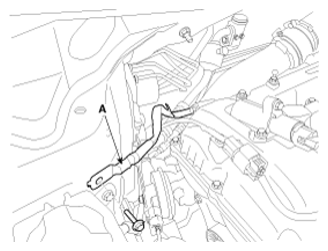

Connect the engine ground cable (A).

Tightening torque:

10.8 ~ 13.7 N.m (1.1 ~ 1.4 kgf.m, 8.0 ~ 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

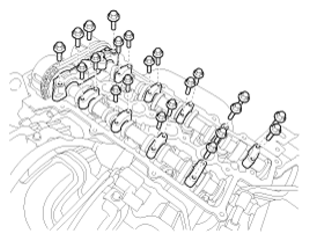

Install the camshaft bearing caps (A) in the order shown in the picture and tighten the bolts to the specified torque.
Tightening torque

1st step

M6 bolt: 5.9 N.m (0.6 kgf.m, 4.3 lb-ft)

M8 bolt: 9.8 N.m (1.0 kgf.m, 7.2 lb-ft)

2nd step

M6 bolts:

11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

M8 bolts:

18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

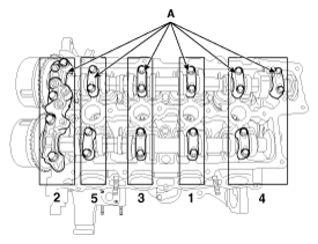

Fig 1: Camshaft Bearing Caps Bolts Tightening Sequence
Courtesy of HYUNDAI MOTOR AMERICA

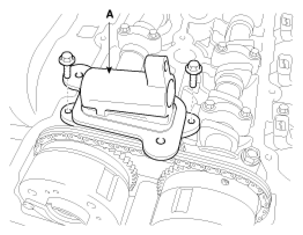

Install the exhaust oil control valve (OCV) adaptor (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Check that the front camshaft bearing cap O-ring is properly seated in place when installing the OCV adaptor
Install the cylinder head cover.
(Refer to Cylinder Head Assembly - "Cylinder Head Cover ")
