Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Loosen the drain plug and drain the engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")

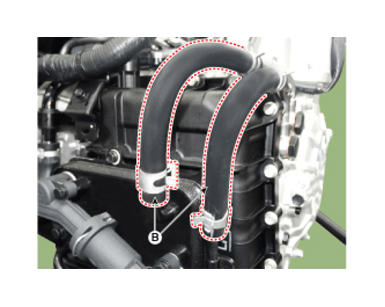

- Disconnect the cooling hose (B) after separated the clamp (A).

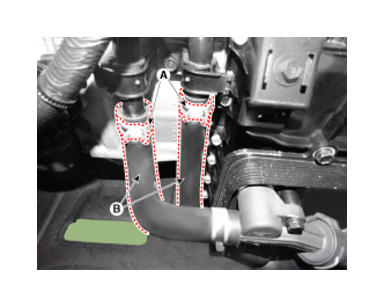

- Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).CAUTION:
- When hose & pipe assembly

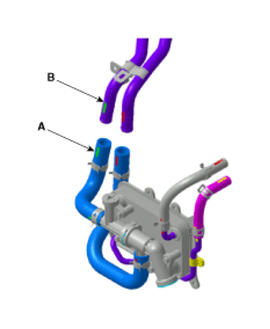

Align marking of pipe (B), marking of hose (A), and matching color each other.
- Carefully install the clamp not to damage the hose
- Install the clamp in a correct direction not to be interfered with other parts
- After the installation, start the engine and then check if there are any leakages from the hose.
- When hose & pipe assembly

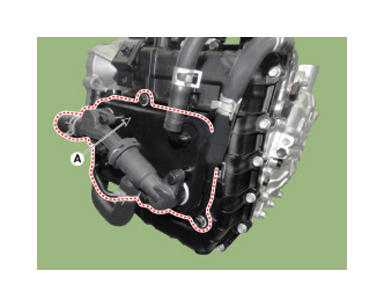

- Remove the ATF warmer (A) from the valve body cover.
Tightening torque:
7.8 ~ 11.8 N.m (0.8 ~ 1.5 kgf.m, 5.8 ~ 8.7 lb-ft)
