Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF
- Remove the air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

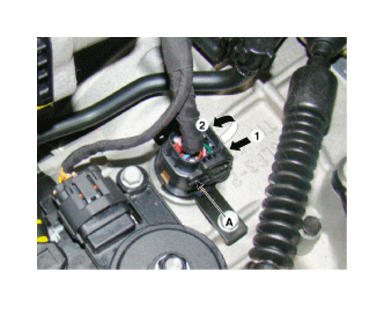

- Disconnect the solenoid valve connector(A).
- Measure resistance between sensor signal terminal and sensor ground terminal
- Check that the resistance is within the specification.
