Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

When the solenoid valve failure code (DTC) is on, perform the following procedure to replace it
Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly
Maintain clean condition so that foreign substance does not get into the automatic transaxle
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle
Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker

Remove the air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and the battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the ATF warmer.
(Refer to Automatic Transaxle System - "ATF WARMER ") (if equipped ATF warmer)

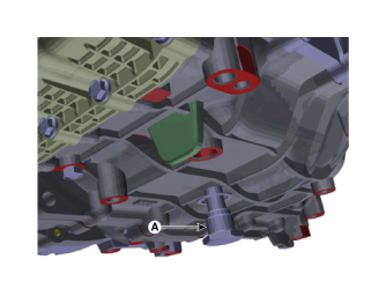

Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Tightening torque:

38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Replace the gasket before reinstalling the drain plug

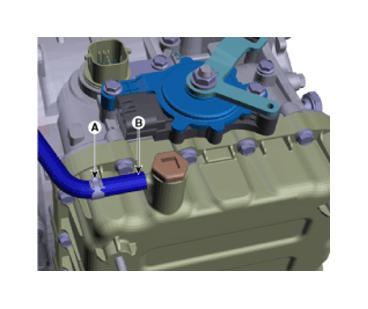

Remove the air bleeder hose (B) after removing the clamp (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the clip for fixing wiring from the valve body cover

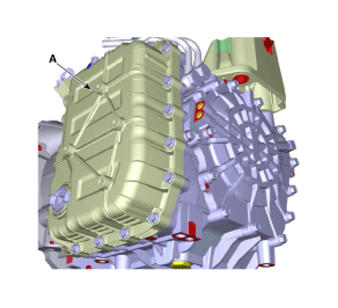

Remove the valve body cover (A).
Tightening torque:

(A) 13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- When re-mounting the valve body cover, replace the gasket (A) with a new one
- After mounting the valve body cover, check for oil leakage on the connecting part while the engine is on.
Courtesy of HYUNDAI MOTOR AMERICA

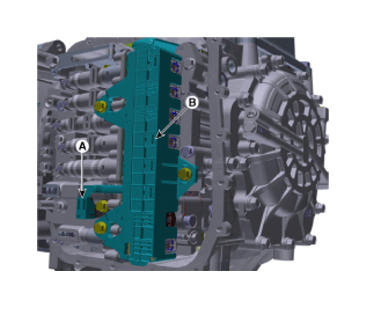

Disconnect the solenoid valve connector (B) and the oil temperature sensor (A) after removing the bolts.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

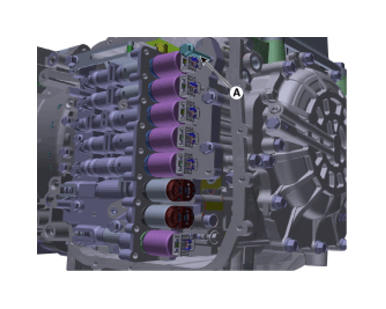

Remove the solenoid valve support bracket (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

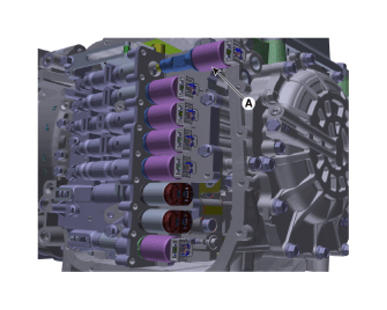

Remove the valve body mounting bolt (A-1ea).

Courtesy of HYUNDAI MOTOR AMERICA

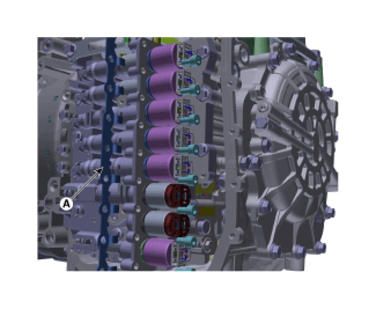

Remove the torque converter control solenoid valve (A).

Courtesy of HYUNDAI MOTOR AMERICA
