Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Make sure vehicle does not roll before setting shift lever to "N" position.
  2. Disconnect the negative (-) battery cable.
  3. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

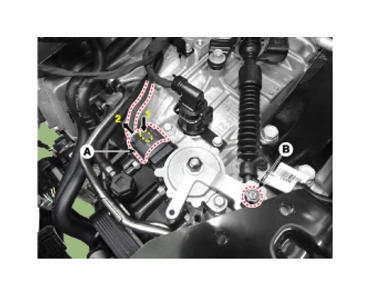

  5. Disconnect the inhibitor switch connector (A).
  6. Remove the shift cable mounting nut (B).
    G12612079Courtesy of HYUNDAI MOTOR AMERICA

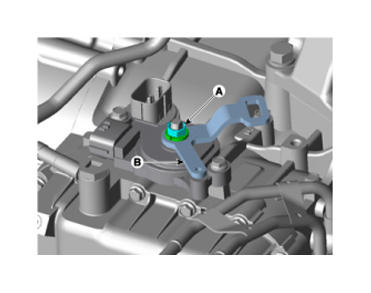

  7. Remove the manual control lever (B) and the washer after removing a nut (A).
    G12612080Courtesy of HYUNDAI MOTOR AMERICA

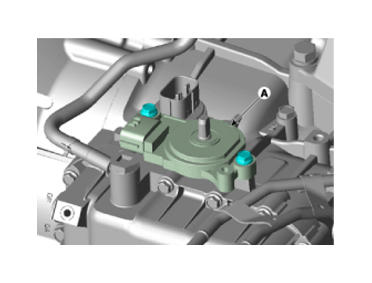

  8. Remove the inhibitor switch (A) after removing the bolts (2ea).
    G12612081Courtesy of HYUNDAI MOTOR AMERICA
