Section 37 (Automatic Transaxle Control System - 2.0L)
>>
Inhibitor Switch
>>
Repair Procedures
>>
Inspection
>>

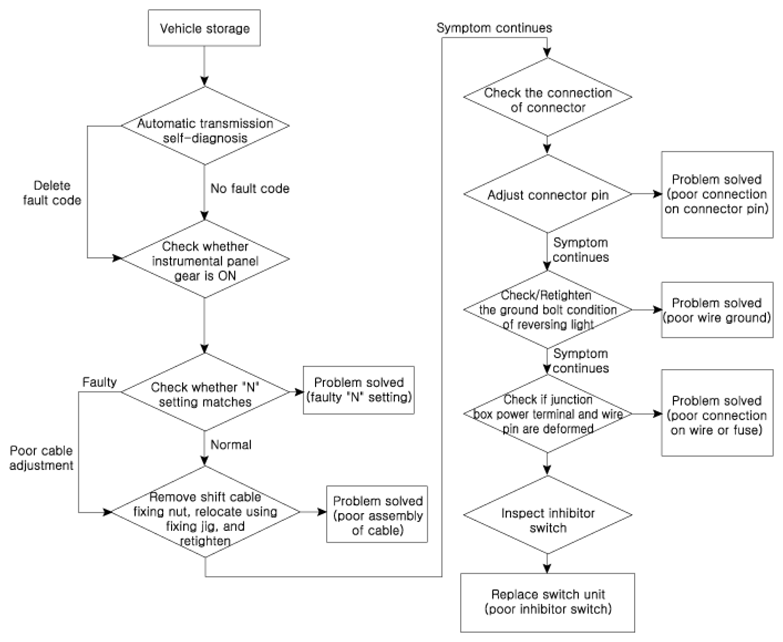

Inspection Flow of the Inhibitor Switch
Inspection Flow of the Inhibitor Switch
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
