Components Location (2)

WARNING: This page is about a different variant/trim than selected.

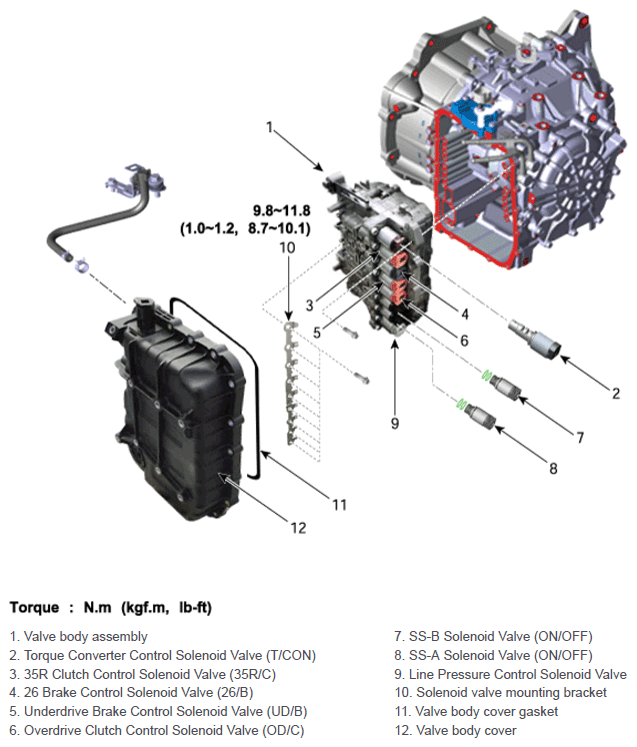

Fig 1: Automatic Transaxle Control System Components With Torque Specification (2)
G12611948Courtesy of HYUNDAI MOTOR AMERICA
