Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

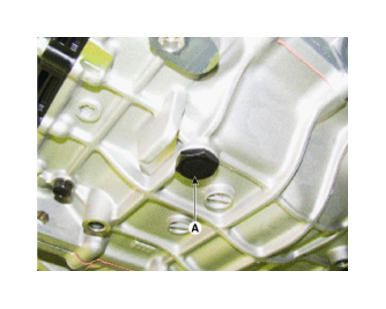

Remove the drain plug (A) and drain the ATF totally and then reinstall the drain plug.
Tightening torque:

33.3 ~ 43.1 N.m (3.4 ~ 4.4 kgf.m, 24.6 ~ 31.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Replace the gasket before reinstalling the drain plug
- After the installation, start the engine and then check if there are any leakages from the drain plug

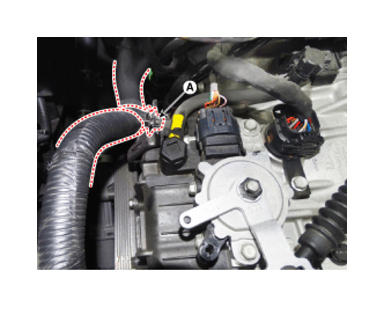

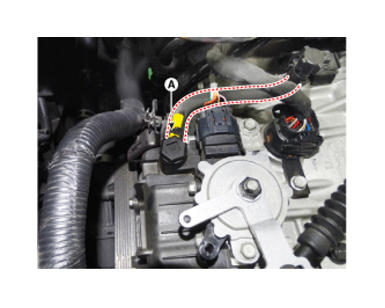

Remove the wiring mounting bolt (A) or clip.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the air breather hose (A) from the valve body cover.

Courtesy of HYUNDAI MOTOR AMERICA

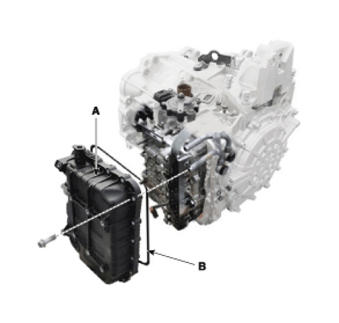

Remove the valve body cover (A).
Tightening torque:

11.8 ~ 13.7 N.m (1.2 ~ 1.4 kgf.m, 8.7 ~ 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Replace the gasket (B) before reinstalling the valve body cover.
- After the installation, start the engine and then check if there are any leakages from the valve body cover
Disconnect the oil temperature sensor (A) and solenoid valve connector (B) from the valve body.
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Check for the looseness, poor connection, bending, corrosion, contamination, deterioration, or damage before reinstalling the solenoid valve connector.

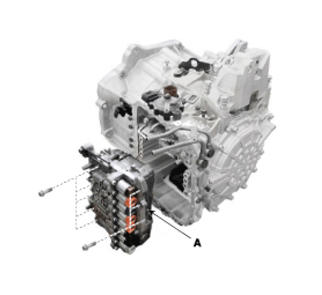

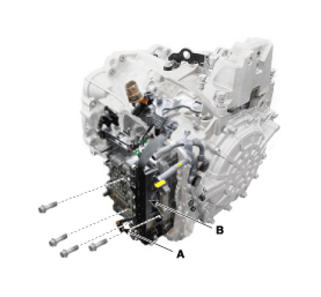

Remove the valve body assembly (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Reassembly and disassembly procedures of the valve body assembly, refer to the appropriate service information .
