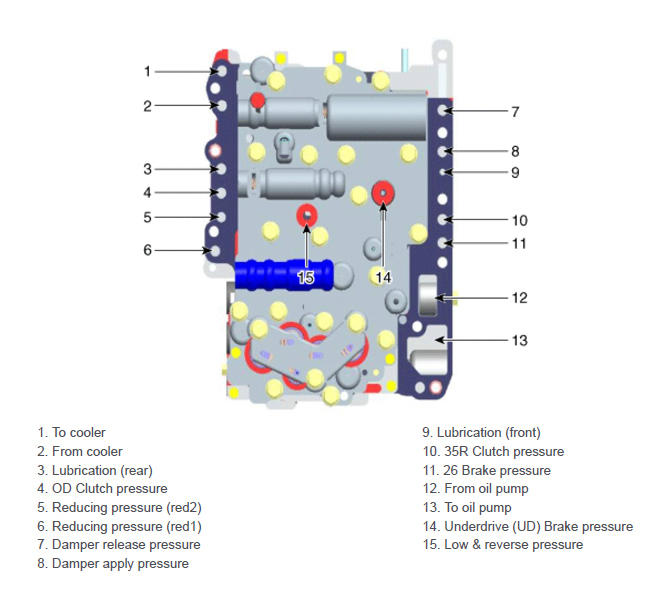

Valve Body Flow

WARNING: This page is about a different variant/trim than selected.

G12611062

Courtesy of HYUNDAI MOTOR AMERICA
