Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "Release Residual Pressure in Fuel Line ")
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT CUSHION COVER ")

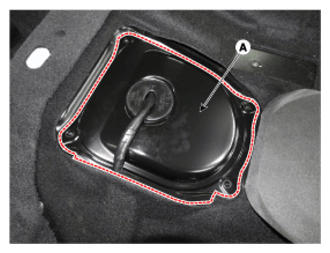

- Remove the fuel pump service cover (A).

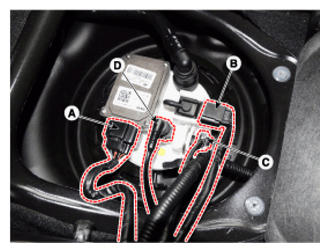

- Disconnect the fuel pump control module connector (A) and the fuel tank pressure sensor connector (B).
- Disconnect the fuel pressure sensor connector (C).
- Disconnect the fuel feed tube quick connector (D).
- Lift the vehicle and support the fuel tank with a jack.

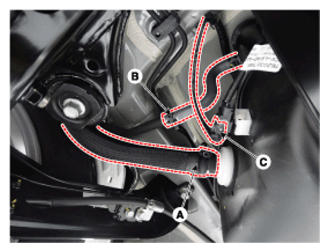

- Disconnect the fuel filler hose (A).
- Disconnect the ventilation tube (B).
- Disconnect the canister close valve connector (C).

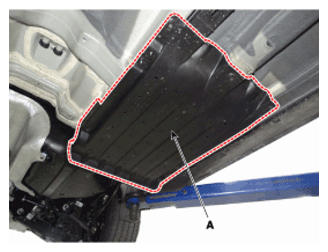

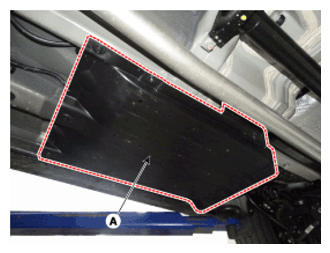

- Remove the under cover (A) after loosening the mounting nuts.

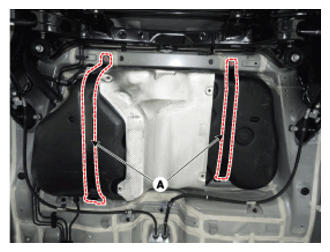

- Remove the fuel tank from the vehicle after removing the fuel tank band (A).NOTE: When removing the fuel tank, the fuel tank must be tilted because of interfering with coupling.
